Max-A-Form® STS Forming System

Experience superior strength, finish, durability and savings with Max‑A‑Form STS!


Max-A-Form STS is ideal for:

  • Heavy Civil and Infrastructure work

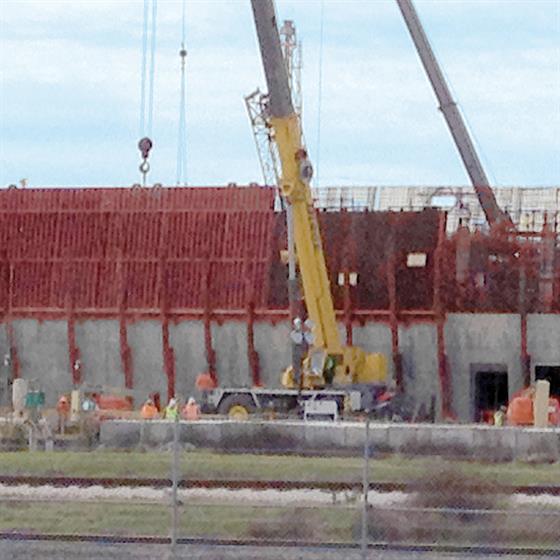

  • Gang forming tall structural walls and columns

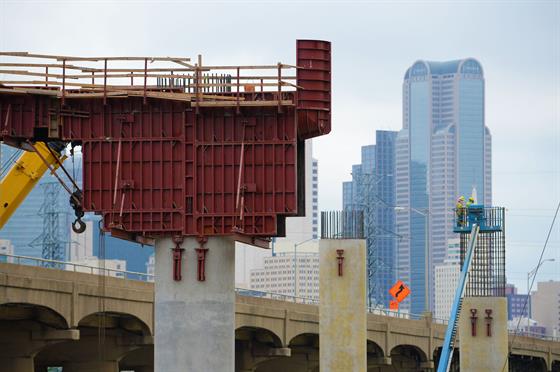

  • Self-spanning applications on Bridge Caps
  • Power plants, STG’s and Coker structures

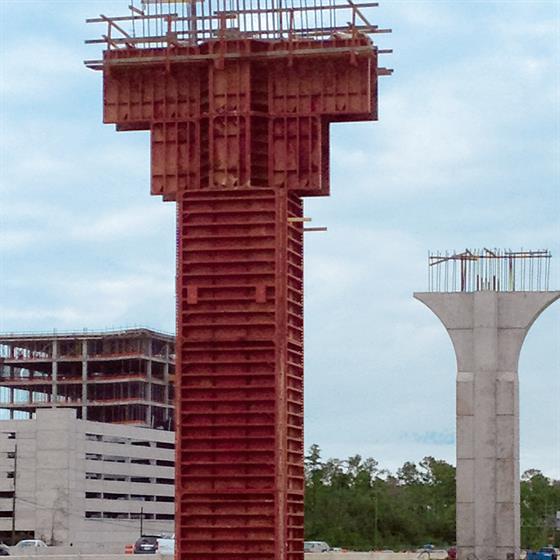

  • Bull nose columns


Features:

  • Up to 2,000 psf allowable concrete pour pressure
  • System Weight: 27 – 30 lbs./PSF

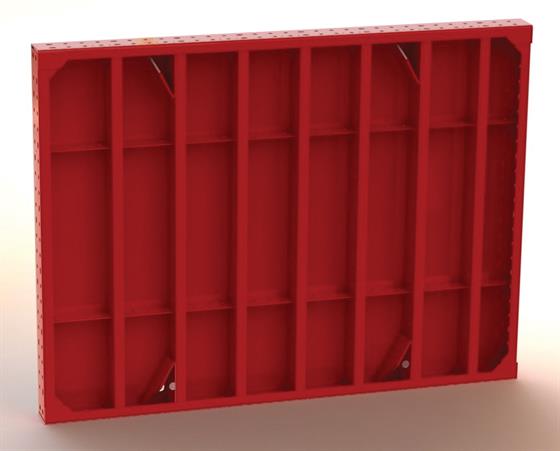

  • Panel Weight ~ 21 lbs./PSF
  • ¼” Steel Skin Plate/Face Sheet
  • STS improves labor efficiencies by increased tie spacing of up to 48 sq. ft/tie.
  • Utilizes a 64 k, 32.5mm taper tie and she-bolt system
    • Also Available: 32.5 K, 20mm taper tie system
  • Over 50 standard panel sizes including
  • 11 standard panel widths
    • 2’, 2’6”, 3’, 3’6”, 4’, 5’, 6’,7’,8’, 10’, and 12’
  • 300K Support system ~ highest rated, rentable support system in the market
