D9A Super Taper Tie

Forming | Sym-Ply | Ties

Dayton

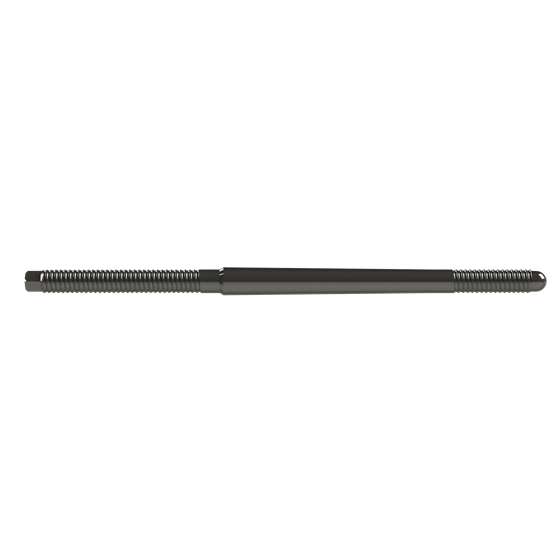

D9A Super Taper Ties are used to connect STS Max-A-Form panels when specifications require or permit complete removal of the form ties from the concrete.
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
146528 15MM X 49" W/ 3/4" TO 11/16" X 24" TAPER - D/R THREAD SOLD IN 1 EACH Call for price {{ vm.getListPrice('146528') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('146528') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('146528') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
146529 15MM X 57" W/ 3/4" TO 11/16" X 32" TAPER - D/R THREAD SOLD IN 1 EACH Call for price {{ vm.getListPrice('146529') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('146529') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('146529') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
146530 15MM X 65" W/ 3/4" TO 11/16" X 40" TAPER - D/R THREAD SOLD IN 1 EACH Call for price {{ vm.getListPrice('146530') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('146530') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('146530') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
145249 32MM X 54" W/ 1/2" TO 1-1/4" X 35" TAPER - D/R THREAD Call for price {{ vm.getListPrice('145249') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('145249') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('145249') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
145250 32MM X 64" W/ 1/2" TO 1-1/4" X 45" TAPER - D/R THREAD Call for price {{ vm.getListPrice('145250') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('145250') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('145250') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
145252 32MM X 84" W/ 1/2" TO 1-1/4" X 65" TAPER - D/R THREAD Call for price {{ vm.getListPrice('145252') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('145252') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('145252') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
  • 100% reusable tie
  • Supplied with 2-1/2" threads per inch D/R thread for rapid installation and stripping
  • Features the same 32mm diameter threads on both sides
  • Manufactured with one square end for wrench turning purposes
  • Ultimate load is 128,000 lbs.
  • Uses one piece swivel wing nut accessory that can handle up to 10° battered walls without use of special washers.

​D9A Super Taper Ties are used where specifications require or permit complete removal of the form ties from the concrete.

Related Products

// View all Related Products

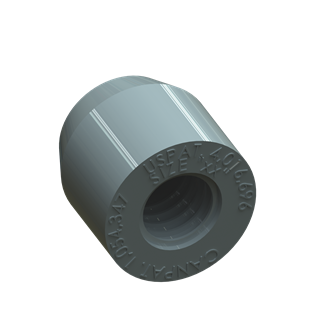

A58 - Sure Plug
