D487 Seal Plugs

Accessories

Dayton

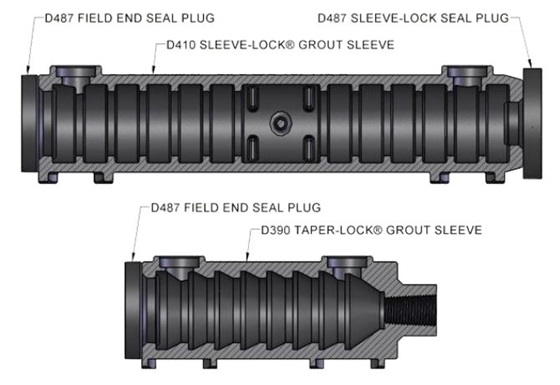

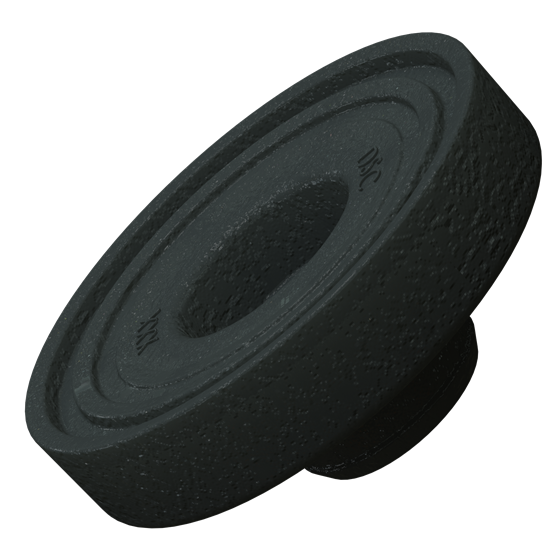

The D487 Seal Plug is a rubber plug to seal connections between grout sleeves and the associated reinforcing bar. It is designed to keep concrete from entering the inner cavity of the grout sleeve and comes in two types for use with either the D390 or D410 Grout Sleeves as follows:


D487 Field End Seal Plug:

Used with either the D390 Taper-Lock® Grout Sleeve or the D410 Sleeve-Lock® Grout Sleeves and is designed specifically for use on the field end of the associated grout sleeve. This seal plug is designed to keep concrete & debris from entering the inner cavity of the DSC Grout Sleeve (Typically seen in the removal of pour strips in tilt applications).


D487 Sleeve-Lock® Seal Plug:

Used only with the D410 Sleeve-Lock Grout Sleeve and is used on the factory end of the sleeve. This seal plug works to keep concrete out of the inner cavity while a panel is being casted. It also provides a barrier between concrete and grout from within the cavity (Used in both precast applications and the removal of pour strips in tilt applications).




PROP65 WARNING: This product can expose you to chemicals known to the state of California to cause cancer or birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.  (Butadiene, Styrene)
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
102400 D487 - Field End Seal Plug; Fits #4 [13MM] for D390 & #4 to #5 [13MM-16MM] for D410 Call for price {{ vm.getListPrice('102400') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('102400') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('102400') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
102401 D487 - Field End Seal Plug; Fits #5 [16MM] for D390 Call for price {{ vm.getListPrice('102401') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('102401') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('102401') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
102402 D487 - Field End Seal Plug; Fits #6 [19MM] for D390 & #6 to #7 [19MM-22MM] for D410 Call for price {{ vm.getListPrice('102402') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('102402') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('102402') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
102403 D487 - Field End Seal Plug; Fits #7 [22MM] for D390 Call for price {{ vm.getListPrice('102403') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('102403') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('102403') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
102404 D487 - Field End Seal Plug; Fits #8 [25MM] for D390 & #8 to #9 [25MM-29MM] for D410 Call for price {{ vm.getListPrice('102404') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('102404') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('102404') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
102405 D487 - Field End Seal Plug; Fits #9 [29MM] for D390 & #10 [32MM] for D410 Call for price {{ vm.getListPrice('102405') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('102405') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('102405') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
102406 D487 - Field End Seal Plug; Fits #10 [32MM] for D390 & #11 [36MM] for D410 Call for price {{ vm.getListPrice('102406') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('102406') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('102406') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
102407 D487 - Field End Seal Plug; Fits #11 [36MM] for D390 Call for price {{ vm.getListPrice('102407') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('102407') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('102407') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
102408 D487 - Field End Seal Plug; Fits #14 [43MM] for D410 Call for price {{ vm.getListPrice('102408') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('102408') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('102408') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
102409 D487 - Field End Seal Plug; Fits #14 [43MM] for D390 Call for price {{ vm.getListPrice('102409') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('102409') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('102409') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
102410 D487 - Field End Seal Plug; Fits #18 [57MM] for D410 Call for price {{ vm.getListPrice('102410') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('102410') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('102410') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
102411 D487 - Fits #18 [57MM] for D390 Call for price {{ vm.getListPrice('102411') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('102411') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('102411') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
139630 D487 - Field End Seal Plug; Fits #4 to #5 [13MM-16MM] for D410; Made in US Call for price {{ vm.getListPrice('139630') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('139630') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('139630') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
139631 D487 - Sleeve-Lock Seal Plug; Fits #6 to #7 [19MM-22MM] for D410; Made in US Call for price {{ vm.getListPrice('139631') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('139631') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('139631') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
139632 D487 - Sleeve-Lock Seal Plug; Fits #8 to #9 [25MM-29MM] for D410; Made in US Call for price {{ vm.getListPrice('139632') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('139632') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('139632') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
139633 D487 - Sleeve-Lock Seal Plug; Fits #10 [32MM] for D410; Made in US Call for price {{ vm.getListPrice('139633') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('139633') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('139633') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
139634 D487 - Sleeve-Lock Seal Plug; Fits #11 [36MM] for D410; Made in US Call for price {{ vm.getListPrice('139634') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('139634') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('139634') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
139635 D487 - Sleeve-Lock Seal Plug; Fits #14 [43MM] for D410; Made in US Call for price {{ vm.getListPrice('139635') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('139635') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('139635') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
139636 D487 - Sleeve-Lock Seal Plug; Fits #18 [57MM] for D410; Made in US Call for price {{ vm.getListPrice('139636') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('139636') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('139636') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart

​
