Sleeve-Lock® Grout Sleeve System

Accessories | Splicing | Sleeve-Lock

Dayton

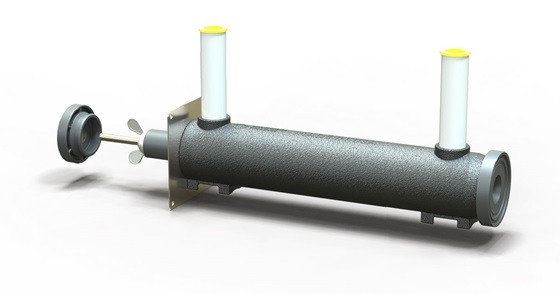

The Dayton Superior D410 Sleeve-Lock® Grout Sleeve is a one-piece mechanical coupler designed to butt-splice reinforcing steel in concrete structures. The Double Ended Grout Sleeve is available in seven (7) sizes to accommodate deformed bar sizes #4 through #18. Bars of like size or of different sizes can be effectively spliced by the System. The D490 Sleeve-Lock® Grout is a specially formulated cement based non-metallic grout to be used with this system. Made in the USA.



Product Features

  • Achieves over 160% Fy, categorizing it as a Type 2 splice.
  • Available in #4-#18 sizes
  • Complete Dayton Superior System (Sleeve and Grout)
  • Offered in Plain or Epoxy
  • Grout ports are equal size and accept ASTM Standard 3/4" SC H 40 PVC
  • Centering pins
  • Integral rebar stop
  • Integrated positioning feet


Typical Applications for Grout Sleeves:
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity

Related Products

// View All Related Products

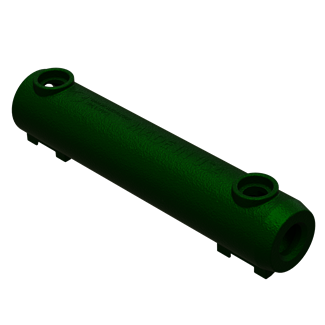

D410 Sleeve-Lock® Double Ended Grout Sleeve

Accessories | Splicing | Sleeve-Lock

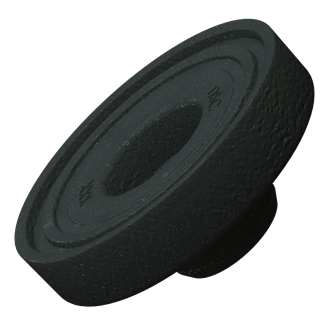

D487 Seal Plugs

Accessories | Splicing | Sleeve-Lock

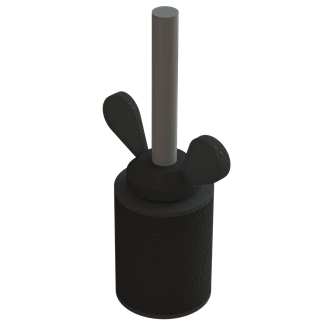

D491 Form Mounting Plugs

Accessories | Splicing | Sleeve-Lock

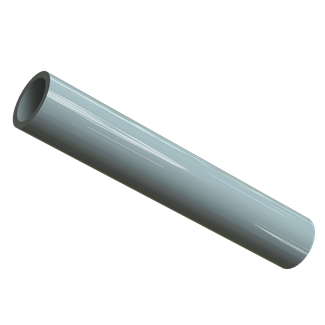

D492 Sleeve-Lock® ¾" SCH40 PVC

Accessories | Splicing | Sleeve-Lock

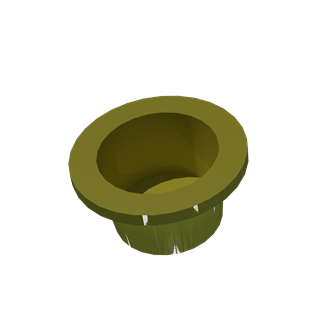

D493 Sleeve-Lock® Port Plug

Accessories | Splicing | Sleeve-Lock

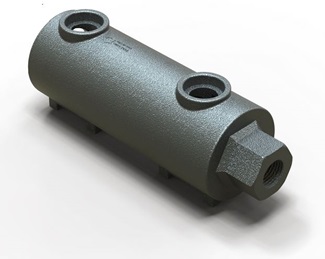

D390 Taper-Lock® Grout Sleeve
