DeckFast™ Shoring System

Forming | DeckFast

Symons

DeckFast™ is a modular slab formwork system used for commercial and industrial applications.

The system supports slabs up to 22" and heights up to 18’11” above the floor or ground.

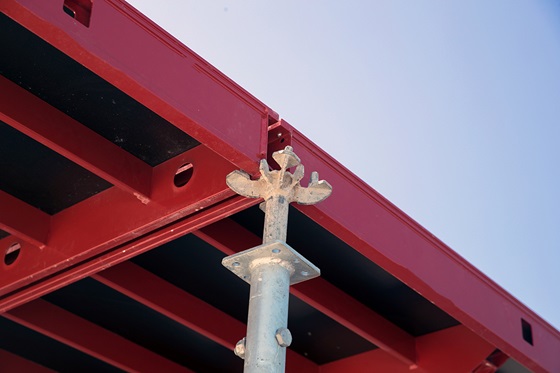

The basic DeckFast system consists of tubular post shores that are adjustable to 18', bearing supports and modular forming panels. The uniqueness of this system lies with bearing supports that capture and support corner clusters of four panels. When the bearing supports are fastened to flat top post shores, the panels and post shores can be erected individually from below, simplifying the erection process.

The easy-to-use DeckFast system, with two basic components and two support rods, can be erected with a minimal amount of training. Even workers who are not familiar with the system can achieve efficiencies of an average of 1000 ft2 per worker per day for most flat slab conditions.

Forming panels are made from 5-ply bonded veneers with 10 mm or 10.5 mm plywood. Edges are protected by specially designed aluminum framing members that not only minimize the gap between panels but also add to panel strength. Aluminum frames minimize maintenance cleaning efforts and reduce cleanup costs


Features: 

  • Two main components: post shores and panels

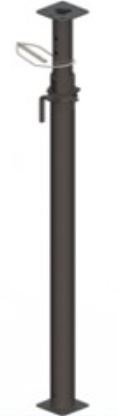

  • Two post shores available: 350 & 550 Post Shore
  • Post Shore Height Support Range: 79” (200 mm) – 217” (5500 mm)
  • Post Shore Weight Support Max: 12,387 lbs. (at 114” Height)


Benefits:

  • Large 180cmx180cm (6'x6') panel increases productivity
  • Aluminum frame makes system light and easy to setup
  • High-capacity galvanized post shores
  • Extra plywood is not required
  • Slabs up to 22" thick
