T29 Shear Connector for the Superior Panel Base Anchor (PBA 10K)

Accessories | Tilt-Up

Dayton

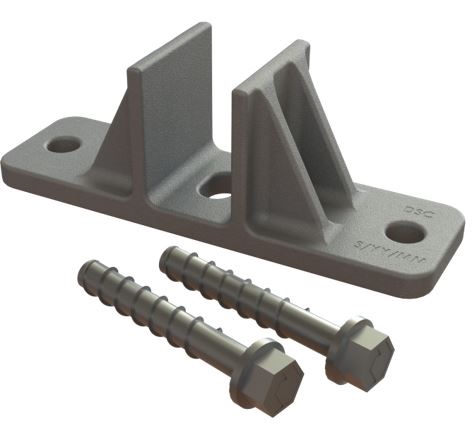

The Superior Shear Connector is an optional accessory to the Superior Panel Base Anchor (PBA 10K)  that is a permanent connection of concrete panels to footings and provides both in-plane and out-of-plane shear resistance to the PBA 10K.

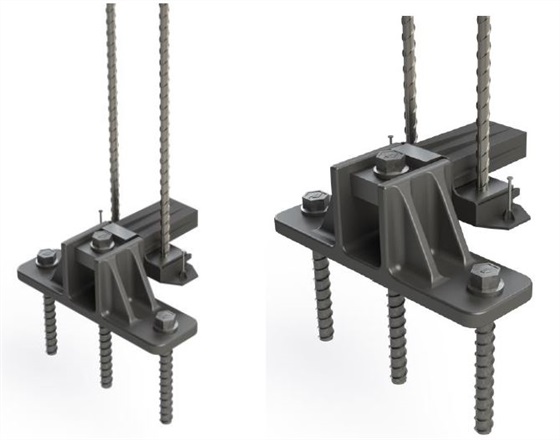

When the shear connector is used with the PBA 10K, a greater ultimate strength capacity of up to 15,000 lbs. of shear resistance in-plane and out-of-plane* occurs than when the PBA 10K is used by itself.

*Capacity may vary depending on anchorage system used
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
  • Meets ACI 318 requirement for 10,000 lbs. panel to slab connection in tension
  • Provides up to 15,000 lbs. of shear resistance in-plane and out-of-plane*
  • Patent-pending
  • One size for all panels

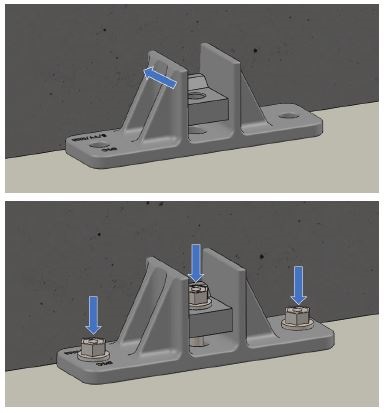

  • Straight forward installation
  • Verifiable calculations
  • May eliminates the need for additional epoxy, grouted or welded structural connections
  • Hot dipped galvanized finish
  • Engineered, two-part design makes it lighter and easier to install into panels
  • Can be used in cracked concrete
  • Slab on-grade full width placement without the need for a fill-in slab or pour back
  • Not dependent on top of footing elevation relative to top of slab elevation

*Capacity may vary depending on anchorage system used

The Panel Base Anchor and optional shear connector can be used in solid panels, insulated sandwich panels and insulated composite panels. They can also be applied to anchor site cast tilt-up panels or plant casted precast panels.

Related Products

// View all Related Products

Single-Use Bearcat™ Bolt

Accessories | Tilt-Up

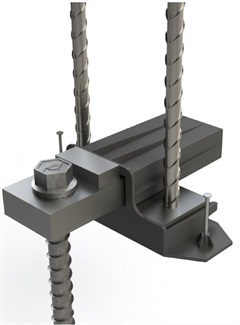

T29 Superior Panel Base Anchor (PBA 10K)
