T29 Superior Panel Base Anchor (PBA 10K)

Accessories | Tilt-Up | Plastic Tilt-Up Accessories

Dayton

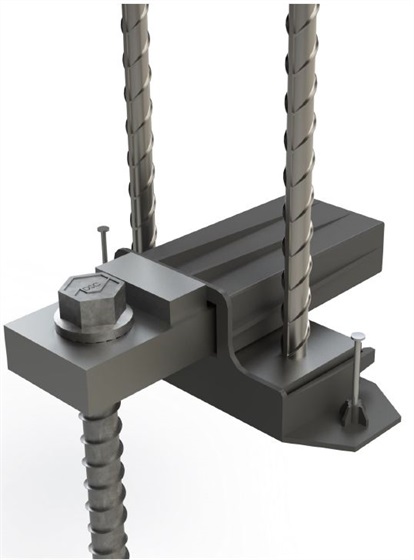

The Dayton Superior Panel Base Anchor is a quick, discrete and durable system engineered for the permanent connection of concrete panels to footings.


Designed for straight forward, easy installation that meets vertical integrity requirements for a nominal tensile strength of 10,000 lbs.


The T29 Superior Shear Connector can be added to the PBA 10K for additional in-plane and out-of-plane shear resistance to create a system that can withstand an ultimate shear load of 15,000 lbs. Please see the TDS for more information on load capacities and installation.
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
  • Patent-pending system developed by Dayton Superior's Tilt-Up experts to meet vertical integrity requirements for a nominal tensile strength of 10,000 lbs.
    • Please refer to ACI 318-19 section 16.2.4.3(b)
  • One size applicable for all solid panel thicknesses down to 5-1/2"
  • Offered with a ZRC coating or hot dipped galvanized finish
  • Not dependent on top of footing elevation relative to top of slab elevation
  • Readily verifiable installations that uses the same on-site skills and equipment required for panel brace installation
  • Two-part design makes it lighter and easier to install into panels
  • May eliminates the need for additional epoxy, grouted or welded structural connections
  • No panel patching required after installation
  • Installed on exterior face of a building
  • Low-profile design providing a discrete connection once grouted and backfilled into project
  • No welding required - providing you savings!
  • Plastic feet functions as a slab saver that eliminates the need for a separate saver.
  • Accommodates horizontal movement of panel due to temperature and shrinkage
Used in solid panels, insulated sandwich panels and insulated composite panels. Can also be applied to anchor site cast tilt-up panels or plant casted precast panels.
