Corewall® Insert

Accessories

Features

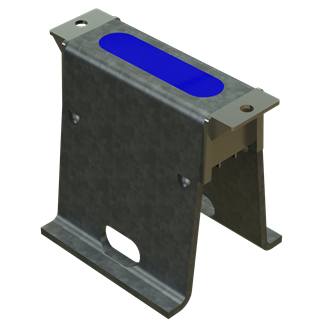

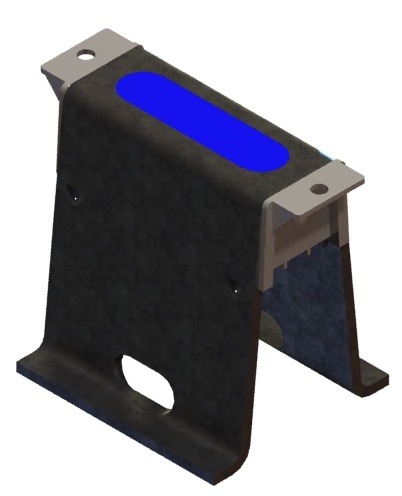

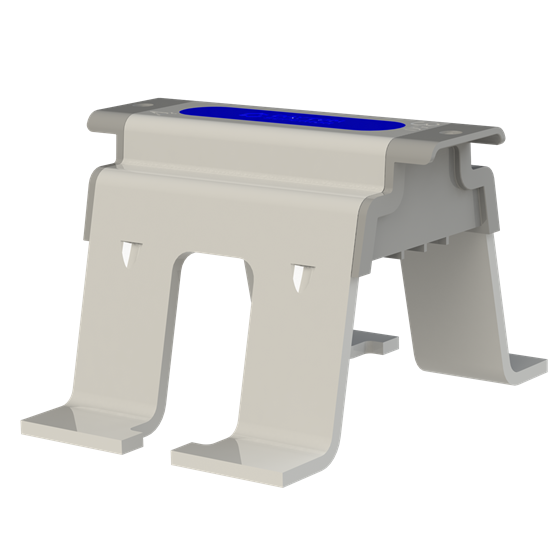

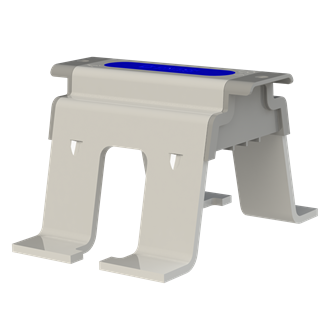

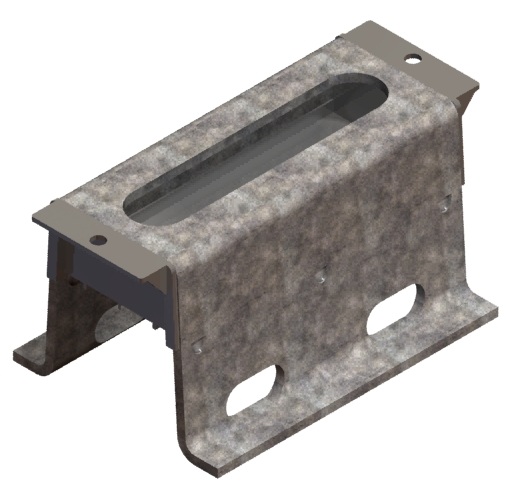

  • One piece steel tapered body - utilizes concrete strength and eliminates pullout possibility
  • Open leg design - easy to position around steel during installation after concrete is in place
  • 3/4”-10 Nut - bears on top and sides of body creating stronger load capacities
  • Load capacities up to 26,000# Ultimate in tension using 5,000 psi concrete - providing the strength needed to attach your panels to the building frame
  • Plastic void former with removable cap - no removing of foam or concrete from void saving time and labor
  • J-Coat finish - economical choice to fit the project needs
  • 3 Insert Heights - a product to fit any panel thickness
  • 3 Insert Lengths - 2.5” to 6.5” of connection adjustment during panel erection
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
