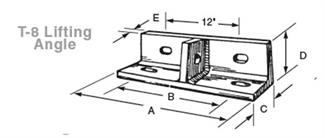

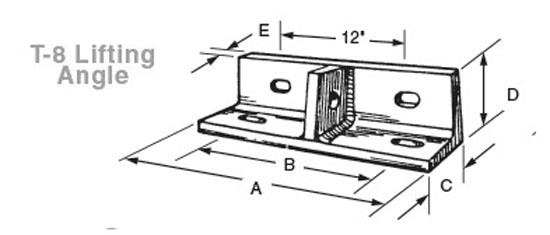

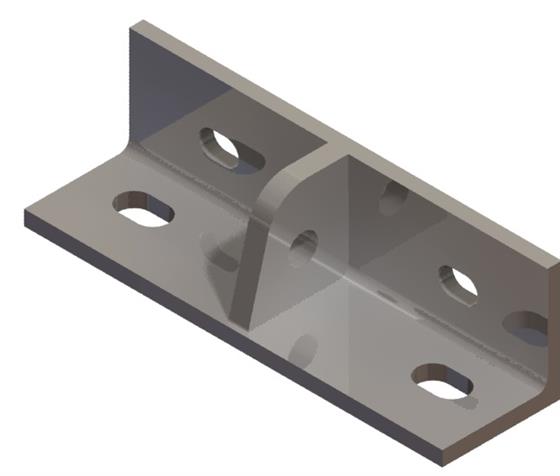

T8 - Lifting Angle

Accessories | Tilt-Up

Dayton
  • Designed for use with T2 Double Pick-Up Inserts.
  • Shorter bolts are required than those used with swivel
    lifting plates, normally 4" lengths.
  • May be used for face lifting inserts and also edge lifting inserts when panel thickness exceeds 6".
  • Cut washers are required under head of all bolts.
  • Made from structural steel angle 6"x6"x3/4"x21" long with 1/2" diameter hole for clevis attachment.
  • Safe working load is 18,000 Ibs.
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
49101 1" X 18" - SOLD IN 32 PARTS PER SKID Call for price {{ vm.getListPrice('49101') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49101') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49101') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
