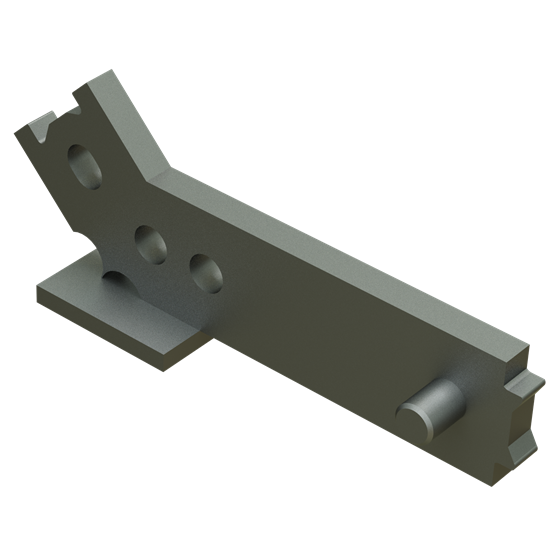

P92AH - Fleet-Lift™ Erection Anchor with 45° Head with Shear Plate

Accessories

Dayton
The Dayton Superior P92AH Fleet-Lift Erection Anchor with 45° Head and Shear Plate is designed for use when the lifting edge is beveled at a 45° angle. The factory-installed shear plate eliminates the need for any additional shear reinforcement. To install the P92AH anchor, position the anchor a minimum of 3/4" and a maximum of 1-1/2" clear of the casting bed. This can be accomplished using any of the standard recess members. After the anchor has been secured in place, tension reinforcement may be added, if desired. After the concrete has set, removal of the edge form and recess member will expose the head of the anchor for easy attachment of the lifting eye. Due to the geometry of the anchor, the loads shown in the table should not be exceeded, even if additional tension reinforcement is present. P92AH Erection Anchors are available plain, or hot-dipped galvanized.

The P92AH Fleet Lift Erection Anchor - 45° Head with Shear Plate is also available to be made to order. Please call for lead timing, pricing, and availability.
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
FL454G 11.25" - 4 TON HDGALV; SOLD IN 150 PARTS PER CARTON Call for price {{ vm.getListPrice('FL454G') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('FL454G') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('FL454G') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
FL458 Call for price {{ vm.getListPrice('FL458') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('FL458') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('FL458') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
FL458G Call for price {{ vm.getListPrice('FL458G') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('FL458G') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('FL458G') | currency:"$":3 }} 75 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
