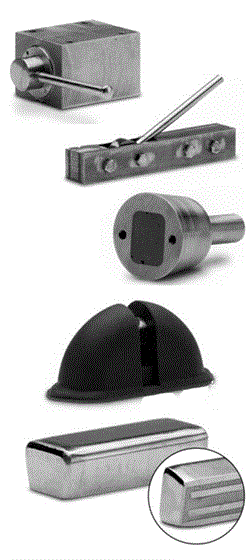

On/Off Magnets, Cam Magnets, Loaf Magnets & Accessories

• Strong adhesion and shear capacity - 650# to 2500# adhesion
• Easy to turn on or off using 5/8" wretch with 90, 1/4 turn of end rotor
• Magnet attraction only on bottom of magnet
• Accepts standard op adapters or custom adapters

Dayton Superior CAM MAGNETS

• Magnet is always on but easy to release from steel using built in cam release arm
• Magnet attraction along sides and bottom
• Available in different styles: Flat, Floating, Hole-Former, Notch
• Strong adhesion and shear capacity for small magnet, up to 1000# adhesion

BUTTON MAGNETS

• 1 Ton and 2.5 Ton Adhesion Capacities standard - other sizes available
• Easy push-down button engages magnet & easy release from steel, using butt and release tool
• Attachment to forms brackets available
• Release tool available to reduce labor

LOAF MAGNETS

• Standard sizes 3", 5", and 11" - custom sizes available
• Magnet is always on but can be released from steel using separate release arm
• Used in many applications including inside steel rails and securing wood forms in place
• Attachments to forms brackets available

MANHOLE STEP MAGNET & RADIUS

• Size available for flat walls for 12", 16" & 24" steps
• Step pins available for all step manufacturer's products
• Separate tool used to remove step pin assembly from concrete
• Eliminates the need to drill holes in core for step pins

HOLE FORMERS & DUCK MAGNETS

• Sizes available to fit into any size block-out, hole former or mandrel
• Different magnetic holding strengths available
• Eliminates the need to drill opening in concrete after it has been cast

BOOT GASKETS

• Utilizes magnet with Cam Release Arm
• Special fabricated attachment mechanisms available
• Available for any size boot gasket
• Available in hinged model for 90 degree attachment

PVC PIPE ATTACHMENT MAGNET

• Pipe Holding Magnets – Light Duty – Urethane
• Pipe Holding Magnets – Heavy Duty - Steel

The P154 On/Off Magnets, Cam Magnets, Loaf Magnets & Accessories are also available to be made to order. Please call customer service at 888-977-9600 for lead timing, pricing, and availability.
