F42 and F42W - Loop Ferrule Inserts

Accessories

Dayton

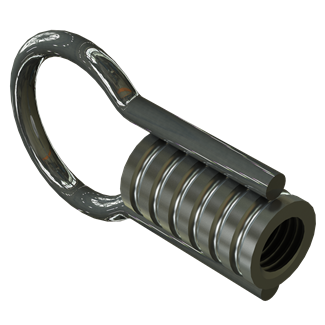

The Dayton Superior F42 Loop Ferrule Insert is fabricated by welding a looped strut to a closed-end ferrule. The F42W is the same as the F42, but it includes mounting washers. They are available in the sizes shown in the chart and are well suited for structural connections and the suspension of equipment, piping, etc. Minimum spacing between inserts is twice the minimum corner distance.

The F42 Loop Ferrule Insert and the F42W Loop Ferrule Insert With Mounting Washer are also available to be made to order. Please call for lead timing, pricing, and availability.
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
49670 F42 - 3/8" DIA. - 16NC; SOLD IN 300 PARTS PER CARTON Call for price {{ vm.getListPrice('49670') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49670') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49670') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49671 F42 - 1/2" DIA. - 13NC PLAIN; SOLD IN 250 PARTS PER CARTON Call for price {{ vm.getListPrice('49671') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49671') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49671') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49672 F42 - 5/8" DIA. - 11NC PLAIN; SOLD IN 150 PARTS PER CARTON Call for price {{ vm.getListPrice('49672') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49672') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49672') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49673 F42 - 3/4" DIA. - 10NC PLAIN; SOLD IN 150 PARTS PER CARTON Call for price {{ vm.getListPrice('49673') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49673') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49673') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49675 F42 - 7/8" DIA. - 9NC; SOLD IN 50 PARTS PER CARTON Call for price {{ vm.getListPrice('49675') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49675') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49675') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49674 F42 - 1" DIA. - 8NC; SOLD IN 42 PARTS PER CARTON Call for price {{ vm.getListPrice('49674') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49674') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49674') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49651 F42 - 3/8" DIA. - 16NC EGALV; SOLD IN 300 PARTS PER CARTON Call for price {{ vm.getListPrice('49651') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49651') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49651') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49652 F42 - 1/2" DIA. - 13NC EGALV; SOLD IN 250 PARTS PER CARTON Call for price {{ vm.getListPrice('49652') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49652') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49652') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49653 F42 - 5/8" DIA. - 11NC EGALV; SOLD IN 150 PARTS PER CARTON Call for price {{ vm.getListPrice('49653') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49653') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49653') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49654 F42 - 3/4" DIA. - 10NC EGALV; SOLD IN 150 PARTS PER CARTON Call for price {{ vm.getListPrice('49654') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49654') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49654') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49655 F42 - 7/8" DIA. - 9NC EGALV; SOLD IN 50 PARTS PER CARTON Call for price {{ vm.getListPrice('49655') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49655') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49655') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49656 F42 - 1" DIA. - 8NC EGALV; SOLD IN 42 PARTS PER CARTON Call for price {{ vm.getListPrice('49656') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49656') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49656') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49615 F42 - 3/8" DIA. - 16NC TYPE 304 SS; SOLD IN 300 PARTS PER CARTON Call for price {{ vm.getListPrice('49615') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49615') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49615') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49618 F42 - 1/2" DIA. - 13NC TYPE 304 SS; SOLD IN 250 PARTS PER CARTON Call for price {{ vm.getListPrice('49618') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49618') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49618') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49620 F42 - 5/8" DIA. - 11NC TYPE 304 SS; SOLD IN 150 PARTS PER CARTON Call for price {{ vm.getListPrice('49620') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49620') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49620') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49623 F42 - 3/4" DIA. - 10NC TYPE 304 SS; SOLD IN 150 PARTS PER CARTON Call for price {{ vm.getListPrice('49623') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49623') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49623') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49703 F42W - 1/" DIA. - 13NC PLAIN; SOLD IN PARTS PER CARTON Call for price {{ vm.getListPrice('49703') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49703') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49703') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49705 F42W - 5/8" DIA. - 11NC PLAIN; SOLD IN PARTS PER CARTON Call for price {{ vm.getListPrice('49705') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49705') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49705') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
49707 F42W - 3/4" DIA. - 10NC PLAIN; SOLD IN PARTS PER CARTON Call for price {{ vm.getListPrice('49707') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('49707') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('49707') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
100184 F42W - 7/8" DIA. - 9NC HDGALV; SOLD IN 50 PARTS PER EACH Call for price {{ vm.getListPrice('100184') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('100184') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('100184') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
  • Safe Working Load provides a factor of safety of approximately 3 to 1 in 3,000 psi normal weight concrete.
  • Safe Working Loads are based on 1/2" setback from face of concrete.
  • Minimum spacing between inserts is twice the minimum corner distance.
  • Available in plain, electro-galvanized and Type 304 Stainless Steel finishes.

F42 and F42W Loop Ferrule Insert Selection Chart

Bolt Diameter and Threads per Inch

Minimum Edge Distance

Minimum Corner Distance

Safe Working Load Tension

Safe Working Load Shear

Maximum Bolt Engagement

A

B

1/4" - 20 NC

5"

5"

650 lbs.

650 lbs.

3/4"

2-3/4"

0.243"

3/8" - 16 NC

5"

5"

2,000 lbs.

1,260 lbs.

3/4"

2-3/4"

0.243"

10"

15"

2,000 lbs.

2,000 lbs.

1/2" - 13 NC

5"

5"

2,000 lbs.

1,280 lbs.

1"

2-3/4"

0.243"

7"

10"

2,000 lbs.

2,000 lbs.

5/8" - 11 NC

5"

7"

2,200 lbs.

1,990 lbs.

1-1/8"

3-1/2"

0.258"

8"

8"

2,200 lbs.

2,200 lbs.

3/4" - 10 NC

5"

7"

2,200 lbs.

1,990 lbs.

1-1/8"

3-1/2"

0.258"

8"

8"

2,200 lbs.

2,200 lbs.

7/8" - 9 NC

8"

8"

5,300 lbs.

4,060 lbs.

1-1/8"

6"

0.375"

10"

15"

5,300 lbs.

5,300 lbs.

1" - 8 NC

8"

8"

5,300 lbs.

4,060 lbs.

1-1/8"

6"

0.375"

10"

15"

5,300 lbs.

5,300 lbs.
