D101 - Dowel-in

Accessories

Dayton

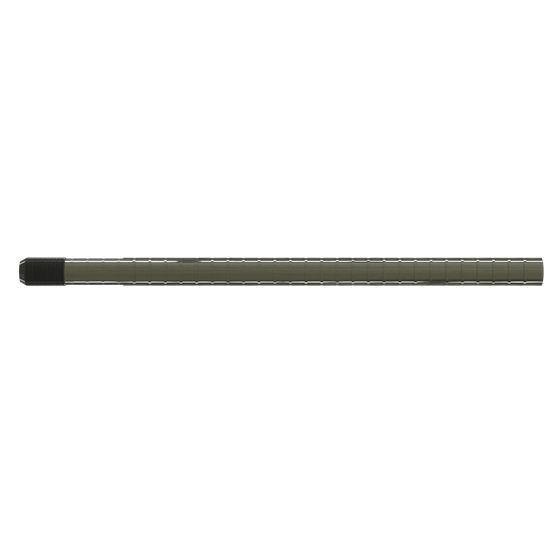

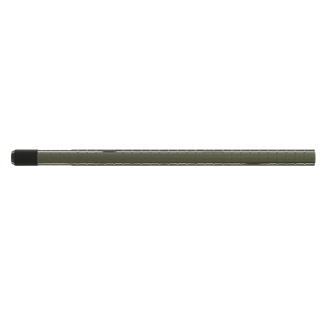

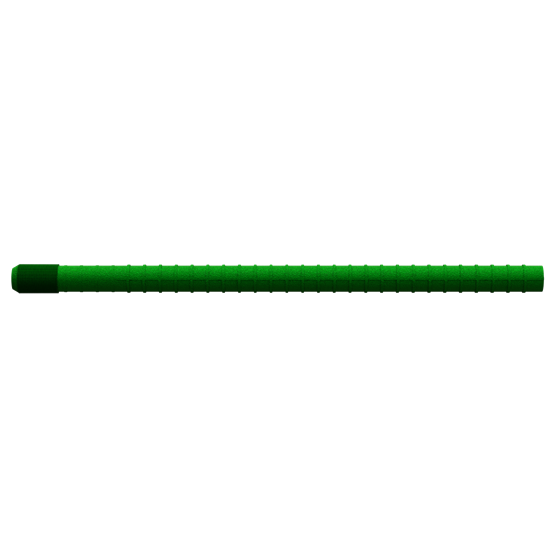

The Dayton Superior Dowel-In is available Straight (D101), 90 ° and 180 ° Hooked (D102 and D103) and Double-Ended (D104). Each is manufactured from grade 60 deformed rebar material and is available in rebar sizes #4 through #11 in plain or epoxy coated finish. The threaded end of the Dowel-In is enlarged by forging, before threading, to ensure that the cross-sectional area of the bar is not reduced by the threading operation. This design feature assures full ultimate strength of the rebar. Dowel-ins are configured to facilitate easy installation and can be easily assembled by hand. On larger projects, such as highway paving, a centrifugal chuck on an electric or air-powered drill motor can be employed to speed installation.
Add To My List
Remove From My List

Pricing Information/Unit Sizes

Product Code Packaging
78174 PLAIN 4 X 12"
78176 PLAIN 4 X 18"
78179 PLAIN 4 X 24"
78182 PLAIN 4 X 30"
78186 PLAIN 4 X 36"
78161 PLAIN 4 X 48"
144055 PLAIN 4 X 54"
144058 PLAIN 4 X 84"
144614 PLAIN 4 X 90"
144060 PLAIN 4 X 102"
144061 PLAIN 4 X 108"
144623 PLAIN 4 X 114"
144159 EPOXY 4 X 12"
78177 EPOXY 4 X 18"
78180 EPOXY 4 X 24"
78183 EPOXY 4 X 30"
78187 EPOXY 4 X 36"
78159 EPOXY 4 X 42"
78162 EPOXY 4 X 48"
144633 EPOXY 4 X 54"
78167 EPOXY 4 X 60"
144163 EPOXY 4 X 84"
144634 EPOXY 4 X 90"
144164 EPOXY 4 X 96"
144165 EPOXY 4 X 102"
144166 EPOXY 4 X 108"
144642 EPOXY 4 X 114"
144289 EPOXY 4 X 120"
78243 PLAIN 5 X 12"
78245 PLAIN 5 X 18"
78249 PLAIN 5 X 24"
78253 PLAIN 5 X 30"
78257 PLAIN 5 X 36"
78260 PLAIN 5 X 42"
78262 PLAIN 5 X 48"
144062 PLAIN 5 X 54"
78233 PLAIN 5 X 60"
144616 PLAIN 5 X 90"
144167 EPOXY 5 X 12"
78246 EPOXY 5 X 18"
78250 EPOXY 5 X 24"
78254 EPOXY 5 X 30"
78258 EPOXY 5 X 36"
78261 EPOXY 5 X 42"
78263 EPOXY 5 X 48"
144168 EPOXY 5 X 54"
78234 EPOXY 5 X 60"
144635 EPOXY 5 X 90"
144174 EPOXY 5 X 102"
144643 EPOXY 5 X 114"
144290 EPOXY 5 X 120"
144068 PLAIN 6 X 12"
78332 PLAIN 6 X 18"
78334 PLAIN 6 X 24"
78338 PLAIN 6 X 30"
78342 PLAIN 6 X 36"
78346 PLAIN 6 X 42"
78350 PLAIN 6 X 48"
144070 PLAIN 6 X 66"
144072 PLAIN 6 X 102"
144176 EPOXY 6 X 12"
78333 EPOXY 6 X 18"
78335 EPOXY 6 X 24"
78339 EPOXY 6 X 30"
78343 EPOXY 6 X 36"
78347 EPOXY 6 X 42"
78351 EPOXY 6 X 48"
144177 EPOXY 6 X 54"
78322 EPOXY 6 X 60"
144181 EPOXY 6 X 96"
144182 EPOXY 6 X 102"
144644 EPOXY 6 X 114"
144074 PLAIN 7 X 12"
78384 PLAIN 7 X 18"
78387 PLAIN 7 X 24"
78389 PLAIN 7 X 30"
78391 PLAIN 7 X 36"
78395 PLAIN 7 X 48"
143565 PLAIN 7 X 54"
144618 PLAIN 7 X 90"
144078 PLAIN 7 X 102"
144626 PLAIN 7 X 114"
144184 EPOXY 7 X 12"
143124 EPOXY 7 X 18"
78388 EPOXY 7 X 24"
78390 EPOXY 7 X 30"
78392 EPOXY 7 X 36"
78394 EPOXY 7 X 42"
78396 EPOXY 7 X 48"
143567 EPOXY 7 X 54"
78435 EPOXY 7 X 60"
144185 EPOXY 7 X 66"
144188 EPOXY 7 X 84"
144637 EPOXY 7 X 90"
144189 EPOXY 7 X 96"
144190 EPOXY 7 X 102"
144191 EPOXY 7 X 108"
144645 EPOXY 7 X 114"
143136 PLAIN 8 X 18"
78443 PLAIN 8 X 24"
143156 PLAIN 8 X 30"
78447 PLAIN 8 X 36"
78449 PLAIN 8 X 42"
78450 PLAIN 8 X 48"
144083 PLAIN 8 X 102"
144084 PLAIN 8 X 108"
144192 EPOXY 8 X 12"
143157 EPOXY 8 X 30"
143158 EPOXY 8 X 36"
144638 EPOXY 8 X 90"
144197 EPOXY 8 X 102"
144198 EPOXY 8 X 108"
143179 PLAIN 9 X 18"
143185 PLAIN 9 X 30"
78499 PLAIN 9 X 48"
78533 PLAIN 9 X 72"
78538 PLAIN 9 X 96"
144087 PLAIN 9 X 102"
144628 PLAIN 9 X 114"
78523 PLAIN 9 X 120"
144199 EPOXY 9 X 12"
143186 EPOXY 9 X 30"
143208 EPOXY 9 X 48"
144200 EPOXY 9 X 66"
143225 EPOXY 9 X 72"
144202 EPOXY 9 X 84"
144204 EPOXY 9 X 102"
144647 EPOXY 9 X 114"
144294 EPOXY 9 X 120"
144092 PLAIN 10 X 30"
143241 PLAIN 10 X 54"
144621 PLAIN 10 X 90"
144097 PLAIN 10 X 108"
78555 PLAIN 10 X 120"
144207 EPOXY 10 X 18"
144208 EPOXY 10 X 24"
144209 EPOXY 10 X 30"
143228 EPOXY 10 X 36"
144210 EPOXY 10 X 42"
143242 EPOXY 10 X 54"
143244 EPOXY 10 X 60"
144211 EPOXY 10 X 66"
143246 EPOXY 10 X 72"
144640 EPOXY 10 X 90"
144213 EPOXY 10 X 102"
144214 EPOXY 10 X 108"
144295 EPOXY 10 X 120"
144101 PLAIN 11 X 30"
144102 PLAIN 11 X 42"
124548 PLAIN 11 X 64"
144622 PLAIN 11 X 90"
78604 PLAIN 11 X 96"
144105 PLAIN 11 X 102"
144106 PLAIN 11 X 108"
144630 PLAIN 11 X 114"
78593 PLAIN 11 X 120"
144215 EPOXY 11 X 12"
144218 EPOXY 11 X 30"
143262 EPOXY 11 X 36"
144219 EPOXY 11 X 42"
143264 EPOXY 11 X 48"
144220 EPOXY 11 X 54"
143278 EPOXY 11 X 60"
143280 EPOXY 11 X 64"
143296 EPOXY 11 X 78"
144221 EPOXY 11 X 84"
144641 EPOXY 11 X 90"
144222 EPOXY 11 X 96"
144223 EPOXY 11 X 102"
144224 EPOXY 11 X 108"
144649 EPOXY 11 X 114"
129030 PLAIN 4 X 24"
129031 PLAIN 4 X 30"
129032 PLAIN 4 X 36"
129028 PLAIN 4 X 48"
144306 PLAIN 4 X 54"
144309 PLAIN 4 X 72"
144310 PLAIN 4 X 78"
144311 PLAIN 4 X 84"
144650 PLAIN 4 X 90"
144312 PLAIN 4 X 96"
144313 PLAIN 4 X 102"
144314 PLAIN 4 X 108"
144658 PLAIN 4 X 114"
144315 PLAIN 4 X 120"
143075 EPOXY 4 X 18"
143076 EPOXY 4 X 24"
143077 EPOXY 4 X 30"
143078 EPOXY 4 X 36"
143080 EPOXY 4 X 48"
144461 EPOXY 4 X 54"
144462 EPOXY 4 X 60"
144464 EPOXY 4 X 72"
144465 EPOXY 4 X 78"
144466 EPOXY 4 X 84"
144666 EPOXY 4 X 90"
144467 EPOXY 4 X 96"
144468 EPOXY 4 X 102"
144469 EPOXY 4 X 108"
144674 EPOXY 4 X 114"
144470 EPOXY 4 X 120"
129040 PLAIN 5 X 24"
129041 PLAIN 5 X 30"
129042 PLAIN 5 X 36"
129044 PLAIN 5 X 48"
144318 PLAIN 5 X 66"
144319 PLAIN 5 X 72"
144320 PLAIN 5 X 78"
144651 PLAIN 5 X 90"
144323 PLAIN 5 X 102"
144324 PLAIN 5 X 108"
144659 PLAIN 5 X 114"
143090 EPOXY 5 X 24"
143091 EPOXY 5 X 30"
143093 EPOXY 5 X 42"
143094 EPOXY 5 X 48"
144472 EPOXY 5 X 54"
143095 EPOXY 5 X 60"
144473 EPOXY 5 X 66"
144474 EPOXY 5 X 72"
144475 EPOXY 5 X 78"
144476 EPOXY 5 X 84"
144667 EPOXY 5 X 90"
144477 EPOXY 5 X 96"
144478 EPOXY 5 X 102"
144675 EPOXY 5 X 114"
144480 EPOXY 5 X 120"
143104 PLAIN 6 X 30"
144328 PLAIN 6 X 66"
144330 PLAIN 6 X 78"
144331 PLAIN 6 X 84"
144652 PLAIN 6 X 90"
144332 PLAIN 6 X 96"
144333 PLAIN 6 X 102"
144334 PLAIN 6 X 108"
144660 PLAIN 6 X 114"
144335 PLAIN 6 X 120"
144481 EPOXY 6 X 12"
143107 EPOXY 6 X 30"
143108 EPOXY 6 X 36"
143109 EPOXY 6 X 42"
143110 EPOXY 6 X 48"
143111 EPOXY 6 X 60"
144483 EPOXY 6 X 66"
144484 EPOXY 6 X 72"
144485 EPOXY 6 X 78"
144486 EPOXY 6 X 84"
144668 EPOXY 6 X 90"
144487 EPOXY 6 X 96"
144488 EPOXY 6 X 102"
144489 EPOXY 6 X 108"
144676 EPOXY 6 X 114"
144490 EPOXY 6 X 120"
144336 PLAIN 7 X 12"
143125 PLAIN 7 X 18"
143126 PLAIN 7 X 24"
143566 PLAIN 7 X 54"
144337 PLAIN 7 X 66"
144339 PLAIN 7 X 78"
144653 PLAIN 7 X 90"
144341 PLAIN 7 X 96"
144342 PLAIN 7 X 102"
144343 PLAIN 7 X 108"
144661 PLAIN 7 X 114"
144344 PLAIN 7 X 120"
144491 EPOXY 7 X 12"
143127 EPOXY 7 X 18"
143128 EPOXY 7 X 24"
143129 EPOXY 7 X 30"
143130 EPOXY 7 X 36"
143131 EPOXY 7 X 42"
143132 EPOXY 7 X 48"
143564 EPOXY 7 X 54"
143133 EPOXY 7 X 60"
144492 EPOXY 7 X 66"
144493 EPOXY 7 X 72"
144494 EPOXY 7 X 78"
144495 EPOXY 7 X 84"
144669 EPOXY 7 X 90"
144496 EPOXY 7 X 96"
144497 EPOXY 7 X 102"
144498 EPOXY 7 X 108"
144677 EPOXY 7 X 114"
144499 EPOXY 7 X 120"
143162 PLAIN 8 X 18"
143163 PLAIN 8 X 24"
143164 PLAIN 8 X 30"
143165 PLAIN 8 X 42"
143166 PLAIN 8 X 54"
144347 PLAIN 8 X 78"
144350 PLAIN 8 X 102"
144351 PLAIN 8 X 108"
144662 PLAIN 8 X 114"
144500 EPOXY 8 X 12"
143167 EPOXY 8 X 18"
143168 EPOXY 8 X 24"
143169 EPOXY 8 X 30"
143172 EPOXY 8 X 48"
143174 EPOXY 8 X 60"
143175 EPOXY 8 X 72"
144502 EPOXY 8 X 78"
144503 EPOXY 8 X 84"
144504 EPOXY 8 X 96"
144505 EPOXY 8 X 102"
144506 EPOXY 8 X 108"
144678 EPOXY 8 X 114"
144507 EPOXY 8 X 120"
144353 PLAIN 9 X 12"
143212 PLAIN 9 X 18"
143213 PLAIN 9 X 24"
143214 PLAIN 9 X 30"
143215 PLAIN 9 X 36"
143216 PLAIN 9 X 42"
143217 PLAIN 9 X 48"
143561 PLAIN 9 X 54"
144354 PLAIN 9 X 66"
144355 PLAIN 9 X 78"
144655 PLAIN 9 X 90"
144358 PLAIN 9 X 102"
144663 PLAIN 9 X 114"
144508 EPOXY 9 X 12"
143218 EPOXY 9 X 18"
143219 EPOXY 9 X 24"
143220 EPOXY 9 X 30"
143221 EPOXY 9 X 36"
143222 EPOXY 9 X 42"
143223 EPOXY 9 X 48"
143562 EPOXY 9 X 54"
143224 EPOXY 9 X 60"
144509 EPOXY 9 X 66"
144510 EPOXY 9 X 72"
144370 EPOXY 9 X 78"
144511 EPOXY 9 X 84"
144671 EPOXY 9 X 90"
144512 EPOXY 9 X 96"
144513 EPOXY 9 X 102"
144514 EPOXY 9 X 108"
144679 EPOXY 9 X 114"
144515 EPOXY 9 X 120"
144361 PLAIN 10 X 12"
144362 PLAIN 10 X 18"
144363 PLAIN 10 X 24"
144364 PLAIN 10 X 30"
143247 PLAIN 10 X 36"
144365 PLAIN 10 X 42"
143248 PLAIN 10 X 48"
143249 PLAIN 10 X 54"
144366 PLAIN 10 X 66"
143250 PLAIN 10 X 78"
144656 PLAIN 10 X 90"
144368 PLAIN 10 X 102"
144369 PLAIN 10 X 108"
144664 PLAIN 10 X 114"
144371 PLAIN 10 X 120"
144516 EPOXY 10 X 12"
144517 EPOXY 10 X 18"
144518 EPOXY 10 X 24"
144519 EPOXY 10 X 30"
143251 EPOXY 10 X 36"
144520 EPOXY 10 X 42"
143252 EPOXY 10 X 48"
143253 EPOXY 10 X 54"
143254 EPOXY 10 X 60"
144521 EPOXY 10 X 66"
143255 EPOXY 10 X 72"
143256 EPOXY 10 X 78"
143257 EPOXY 10 X 84"
144672 EPOXY 10 X 90"
144522 EPOXY 10 X 96"
144523 EPOXY 10 X 102"
144524 EPOXY 10 X 108"
144680 EPOXY 10 X 114"
144525 EPOXY 10 X 120"
144372 PLAIN 11 X 12"
144373 PLAIN 11 X 18"
144374 PLAIN 11 X 24"
144375 PLAIN 11 X 30"
143282 PLAIN 11 X 36"
144376 PLAIN 11 X 42""
143283 PLAIN 11 X 48"
144377 PLAIN 11 X 54"
143284 PLAIN 11 X 60"
143285 PLAIN 11 X 64"
143286 PLAIN 11 X 72"
143287 PLAIN 11 X 78"
144378 PLAIN 11 X 84"
144657 PLAIN 11 X 90"
144379 PLAIN 11 X 96"
144380 PLAIN 11 X 102"
144381 PLAIN 11 X 108"
144665 PLAIN 11 X 114"
144382 PLAIN 11 X 120"
144526 EPOXY 11 X 12"
144527 EPOXY 11 X 18"
144528 EPOXY 11 X 24"
144529 EPOXY 11 X 30"
143288 EPOXY 11 X 36"
144530 EPOXY 11 X 42"
143289 EPOXY 11 X 48"
144531 EPOXY 11 X 54"
143290 EPOXY 11 X 60"
143291 EPOXY 11 X 64"
143292 EPOXY 11 X 72"
143293 EPOXY 11 X 78"
144532 EPOXY 11 X 84"
144673 EPOXY 11 X 90"
144533 EPOXY 11 X 96"
144534 EPOXY 11 X 102"
144535 EPOXY 11 X 108"
144681 EPOXY 11 X 114"
144536 EPOXY 11 X 120"
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
