C49D - Bridge Overhang Bracket D

Accessories | Bridge Deck

Dayton

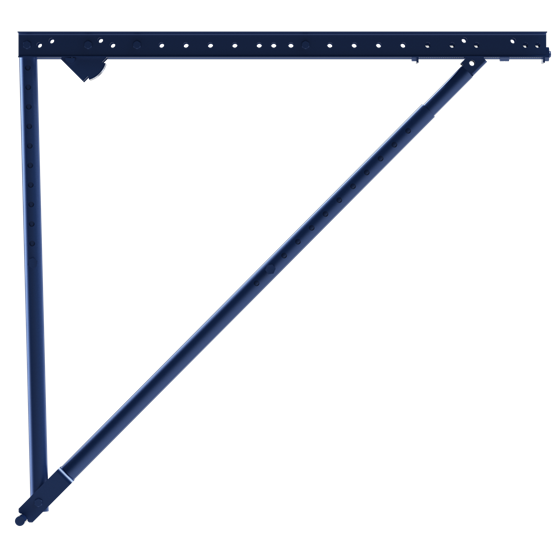

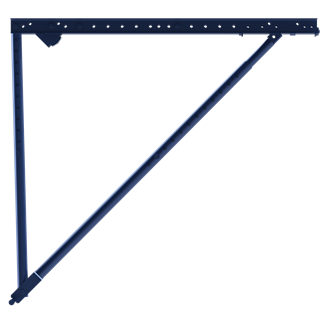

The C49D - Bridge Overhang Bracket D has all of the features of the C49 bracket but has longer vertical and diagonal legs. The longer legs, and resulting increase in adjustment, allow the bracket to be used on deep structural steel beams to position the construction load transfer near the beam's bottom flange. Made in America.
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
60260SUB Call for price {{ vm.getListPrice('60260SUB') | currency }}
/ EACH
Call for price {{ vm.getListPrice('60260SUB') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('60260SUB') | currency:"$":3 }} 1 each increments
60260 FOR DEEP BEAMS; MADE IN USA; SOLD IN 100 PER SKID Call for price {{ vm.getListPrice('60260') | currency }}
/ EACH
Call for price {{ vm.getListPrice('60260') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('60260') | currency:"$":3 }} 1 each increments
  • SAFE and PRODUCTIVE! Can be easily and quickly preset on the ground and then set in place as needed. If requested, Dayton Bridge Overhang Brackets can be shipped "knocked down" for ease in handling and shipping. Final assembly can be easily accomplished at the job site during the presetting operation.
  • VERSATILE. Works with structural steel, precast/prestressed or concrete box beams.
  • Lots of accessories available (Extenders, Guardrail Receptacles, Wall Plate Assemblies, etc.

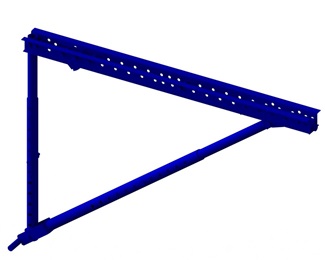

The C49 Bridge Overhang Bracket accommodates an adjustment range of 30" to 70" and can be mounted to steel beams, precast concrete beams and concrete box beams with the appropriate hanger devices.

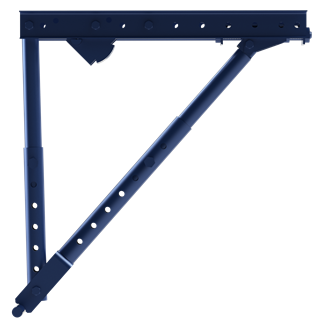

The C49JR Bridge Overhang Bracket is a smaller version of the C49 for use on smaller bridge beams, with a vertical adjustment range of 16" to 28"
The C49D Bridge Overhang Bracket has all the features of the C49 Bracket, but has longer vertical and diagonal legs.

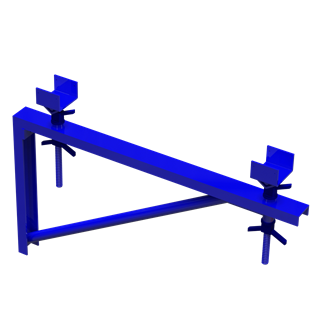

The C49W Bridge Overhang Bracket aids in preventing web of beam from bending during construction of bridge deck.
