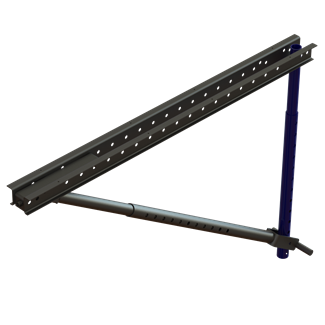

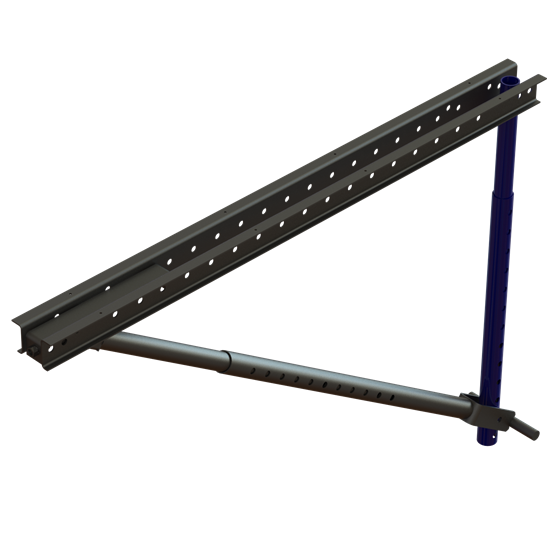

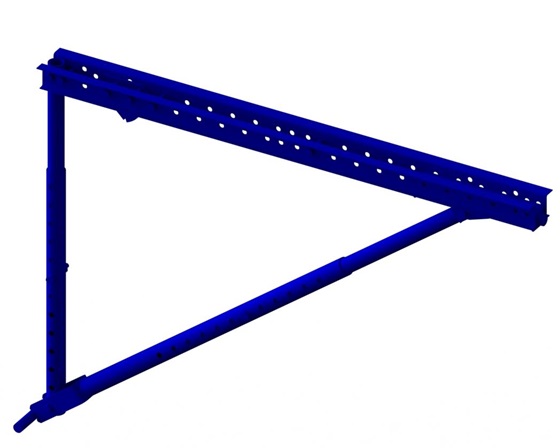

C49 - Bridge Overhang Bracket

Accessories | Bridge Deck

Dayton
All Dayton Superior Bridge Overhang Brackets–including C49 Bridge Overhang Brackets–are designed with maximum adjustability to meet the varied overhang forming requirements on either structural steel or precast/prestressed concrete beams. Can easily be mounted to steel beams, precast concrete beams and concrete box beams with the appropriate hanger devices.

The C49 Bridge Overhang Bracket is also available to be made to order. Please call for lead timing, pricing, and availability.
Product Code Packaging Unit Of Measure {{vm.msrpHeading}} {{vm.userPriceHeading}} Quantity
60251 C49 - Bridge Overhang Bracket EA Call for price $220.70 Call for price {{ vm.getMsrpPrice('60251') | currency }} Log In Call for price {{ vm.getUserPrice('60251') | currency:"$":3 }}
139588 C49 - Bridge Overhang Bracket EA Call for price $111.96 Call for price {{ vm.getMsrpPrice('139588') | currency }} Log In Call for price {{ vm.getUserPrice('139588') | currency:"$":3 }}
60250 FULLY ASSEMBLED; MADE IN USA; SOLD IN 1 PART PER CARTON EA Call for price $220.70 Call for price {{ vm.getMsrpPrice('60250') | currency }} Log In Call for price {{ vm.getUserPrice('60250') | currency:"$":3 }}
  • SAFE and PRODUCTIVE! Can be easily and quickly preset on the ground and then set in place as needed. If requested, Dayton Bridge Overhang Brackets can be shipped "knocked down" for ease in handling and shipping. Final assembly can be easily accomplished at the job site during the presetting operation.
  • VERSATILE. Works with structural steel, precast/prestressed or concrete box beams.
  • Lots of accessories available (Extenders, Guardrail Receptacles, Wall Plate Assemblies, etc.)
The C49 Bridge Overhang Bracket accommodates an adjustment range of 30" to 70" and can be mounted to steel beams, precast concrete beams and concrete box beams with the appropriate hanger devices.
The C49JR Bridge Overhang Bracket is a smaller version of the C49 for use on smaller bridge beams, with a vertical adjustment range of 16" to 28"
The C49D Bridge Overhang Bracket has all the features of the C49 Bracket, but has longer vertical and diagonal legs.
The C49W Bridge Overhang Bracket aids in preventing web of beam from bending during construction of bridge deck.
