P14 (Type L) and P15 (Type M) Connector Pins

Accessories

Dayton
The Dayton Superior Connector Pin is used to tie two wythes together. The pins work in tension and compression to resist wind pressure and suction. The pins also prevent bowing and separation of the individual wythes of the panel. The pins are produced from type 304 stainless steel for excellent corrosion resistance. Since the pins are made from small diameter wire, they are flexible and do not offer any resistance to movement from thermal stresses that build up in the panel.

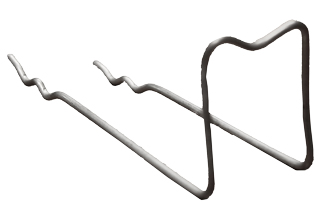

The P14 Type L Connector Pin is a made to order item. Please call for availability, lead time and pricing.
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity

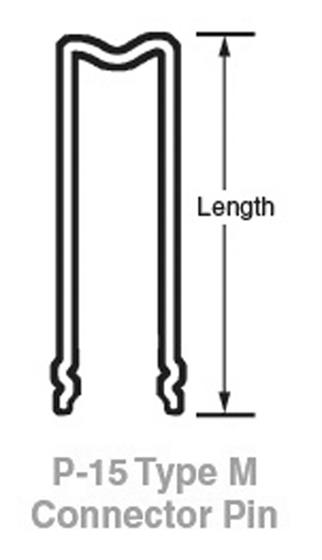

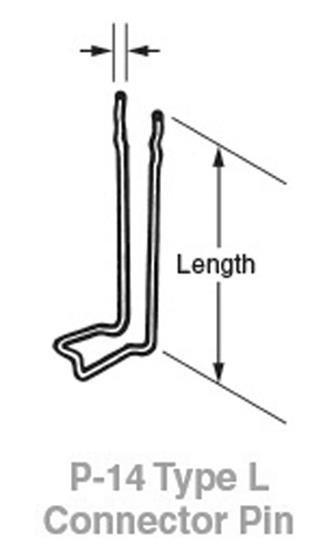

The P15 Type M Connector Pin is available in 4-3/4", 5-1/2" and 6-1/4" lengths. The P14 Type L Connector Pin is available in lengths of 4-3/4", 5-1/2", 6-1/4" or 7-1/2". Maximum pin spacing is 4'-0" on center, or one pin for each 5 sq. ft. of panel area. However, pins should be spaced at 24" maximum on center along the panel edges.
