H55R - Strand Restraining Device

Accessories

Dayton
• High Strength Coil Rod Diameter — 1.0" (25 mm).
• Max. safe working load per strand — 4,000 lbs. (17.7 kN)
• Max. safe working load per unit — 48,000 lbs. (212.0 kN)

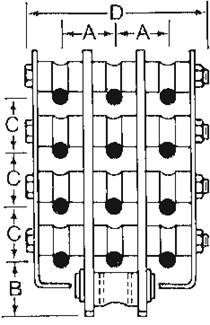

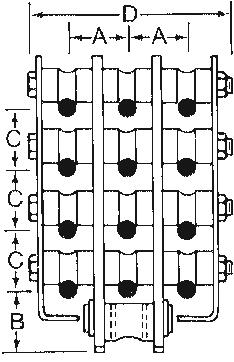

• (A) Horizontal spacing — 2.0" (50 mm).
• (B) Min. vertical spacing (form to centerline of first strand) — 2.0" (50 mm).
• (C) Standard vertical spacing — 2.0" (50 mm).
• (D) Overall width — 6-7/8" (174.6 mm).

The H55R Prestress Strand Restraining Device is a made to order product only. Please call for lead timing, pricing, and availability.
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
101471 H55R - 1" DIA. Holddown; 6 Strands; C=2 B=2; EGALV Side Frames and Swivel Lug; Made in US Call for price {{ vm.getListPrice('101471') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('101471') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('101471') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
101472 H55R - 1" DIA. Holddown; 6 Strands; C=4 B=4; EGALV Side Frames and Swivel Lug; Made in US Call for price {{ vm.getListPrice('101472') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('101472') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('101472') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
101473 H55R - 1" DIA. Holddown; 9 Strands; C=4 B=4; EGALV Side Frames and Swivel Lug; Made in US Call for price {{ vm.getListPrice('101473') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('101473') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('101473') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
101474 H55R - 1" DIA. Holddown; 12 Strands; C=2 B=2; EGALV Side Frames and Swivel Lug; Made in US Call for price {{ vm.getListPrice('101474') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('101474') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('101474') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
101475 H55R - 1" DIA. Holddown; 15 Strands; C=2 B=2; EGALV Side Frames and Swivel Lug; Made in US Call for price {{ vm.getListPrice('101475') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('101475') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('101475') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
101476 H55R - 1" DIA. Holddown; 24 Strands; C=2 B=2; EGALV Side Frames and Swivel Lug; Made in US Call for price {{ vm.getListPrice('101476') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('101476') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('101476') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
