H25S - Strand Restraining Device

Accessories

Dayton
• High Strength Coil Rod Diameter — 3/4" (19 mm).
• Max. safe working load per strand — 7,500 lbs. (33.3 kN)
• Max. safe working load per unit — 24,000 lbs.
• High Strength Coil Rod Diameter — 3/4” (19 mm).
• Max. safe working load per strand — 7,500 lbs. (33.3 kN)
• Max. safe working load per unit — 24,000 lbs. (106.0 kN)

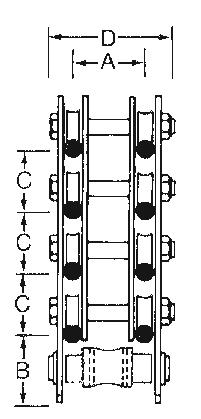

• (A) Horizontal spacing — 2.0" (50 mm).
• (B) Min. vertical spacing (form to centerline of first strand) — 2.0" (50 mm).
• (C) Standard vertical spacing — 2.0" (50 mm).
• (D) Overall width — 3-7/8" (98 mm).

The H25S Prestress Strand Restraining Device is also available to be made to order. Please call for lead timing, pricing, and availability.
