H24 - Strand Restraining Device

Accessories

Dayton
• High Strength Coil Rod Diameter — 3/4" (19 mm).
• Max. safe working load per strand — 6,000 lbs. (26.6 kN) See Note 3 in Handbook.
• Max. safe working load per unit — 24,000 lbs. (106.0 kN) See Note 3 in Handbook.

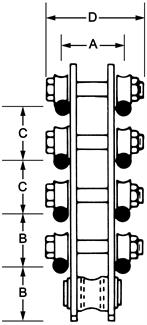

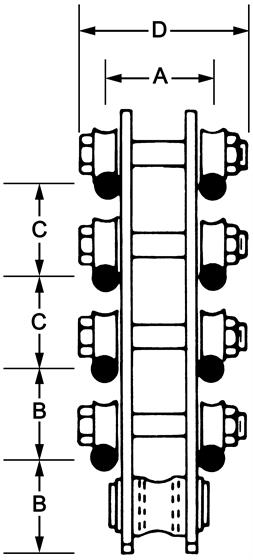

• (A) Horizontal spacing — 2.0" (50 mm).
• (B) Min. vertical spacing (form to centerline of first strand) — 2.0" (50 mm).
• (C) Standard vertical spacing — 2.0" (50 mm).
• (D) Overall width — 3-7/8" (98 mm).

The H24 Prestress Strand Restraining Device is also available to be made to order. Please call for lead timing, pricing, and availability.
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
50062 3/4" - 6 STRANDS - SOLD IN 1 EACH Call for price {{ vm.getListPrice('50062') | currency }}
/ EACH
Call for price {{ vm.getListPrice('50062') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('50062') | currency:"$":3 }} 1 each increments
50063 3/4" - 6 STRANDS - SOLD IN 1 EACH Call for price {{ vm.getListPrice('50063') | currency }}
/ EACH
Call for price {{ vm.getListPrice('50063') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('50063') | currency:"$":3 }} 1 each increments
50064 3/4" - 8 STRANDS - SOLD IN 1 EACH Call for price {{ vm.getListPrice('50064') | currency }}
/ EACH
Call for price {{ vm.getListPrice('50064') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('50064') | currency:"$":3 }} 1 each increments
50065 3/4" - 10 STRANDS - SOLD IN 1 EACH Call for price {{ vm.getListPrice('50065') | currency }}
/ EACH
Call for price {{ vm.getListPrice('50065') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('50065') | currency:"$":3 }} 1 each increments
