H23 - Strand Restraining Device

Accessories

Dayton
• High Strength Coil Rod Diameter — 3/4" (19 mm)
• Max. safe working load per strand — 8,000 lbs. (35.4 kN)
• Max. safe working load per unit — 24,000 lbs. (106.0 kN)

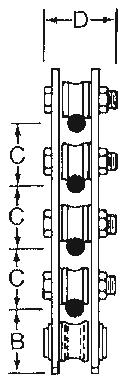

• (A) Horizontal spacing — Not applicable.
• (B) Min. vertical spacing (form to centerline of first strand) — 2.0" (50 mm).
• (C) Standard vertical spacing — 2.0" (50 mm).
• (D) Overall width — 2-3/8" (60 mm).

The H23 Prestress Strand Restraining Device is a made to order product only. Please call for lead timing, pricing, and availability.
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
