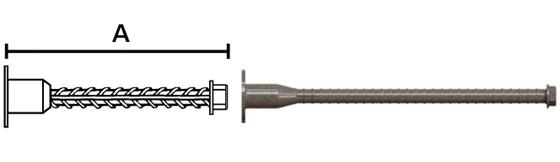

The D58A DBR Dowel-Bar (DB), Bolt Head is a Type 1, rebar coupler used to connect rebar and provide anchorage. It consists of an integral, nailing flange, a coupler forged from the end of the rebar, parallel, female threads, and a forged, hex bolt, end anchor. The D58A is made from USA melted and rolled steel.
Ability to use the flange and nails to attach the system to formwork
Available in standard and customized lengths
DBR, Type 1, parallel threads
Easier to use and up to 25% faster installation
Saves $100 in form repair costs by not requiring a rebar through-hole
Versatility to meet project needs
The D58A Dowel-Bar (DB), Bolt Head is used to connect rebar between segmental, concrete pouring and provide embedment anchorage. It may be attached to formwork through the integral nailing flange.
