D24 - Weld Angle Bracket

Accessories | Wall Forming Accessories

Dayton

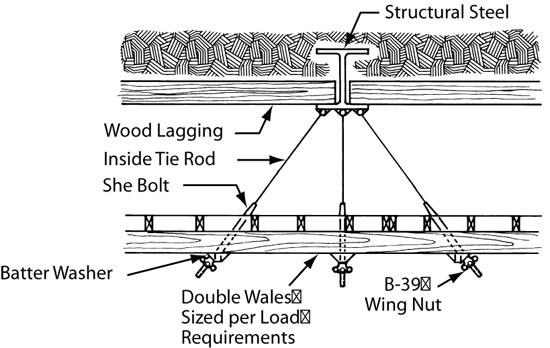

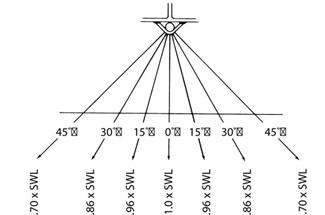

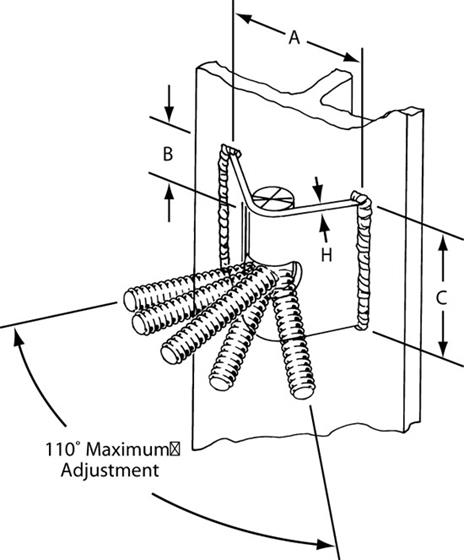

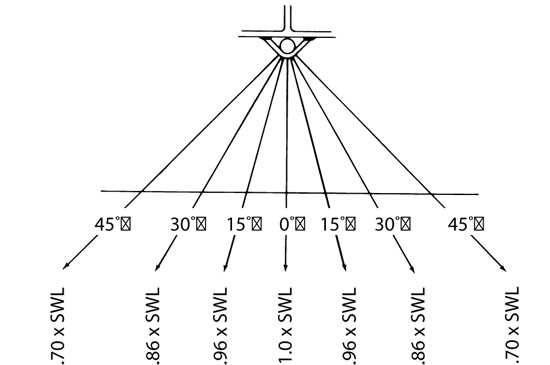

Dayton Superior D24 Weld Angle Bracket is designed to tie one-sided forming to steel piles, metal beams, weld plates, etc. The pivot pin is furnished with coil thread, NC thread is available on special order. The D24 allows the form tie a pivot range of 110° (55° each direction), and will exceed the tensile capacity of the form tie when properly installed by a certified welder. See safety note concerning welding on inside front cover.

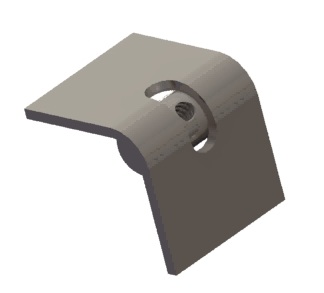

The D24 Adjustable Weld Angle Bracket is also available to be made to order. Please call for lead timing, pricing, and availability.
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
145668 3/4" - COIL THREAD ASSEMBLY (PLATE, PIN, CLIP); SOLD IN 12 PARTS PER CARTON Call for price {{ vm.getListPrice('145668') | currency }}
/ EACH
Call for price {{ vm.getListPrice('145668') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('145668') | currency:"$":3 }} 1 each increments
145670 1" - COIL THREAD ASSEMBLY (PLATE, PIN, CLIP); SOLD IN 8 PARTS PER CARTON Call for price {{ vm.getListPrice('145670') | currency }}
/ EACH
Call for price {{ vm.getListPrice('145670') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('145670') | currency:"$":3 }} 1 each increments
100225 15MM - D/R THREAD ASSEMBLY (PLATE, PIN, CLIP); SOLD IN 12 PARTS PER CARTON Call for price {{ vm.getListPrice('100225') | currency }}
/ EACH
Call for price {{ vm.getListPrice('100225') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('100225') | currency:"$":3 }} 1 each increments
