C67 - Tie Bar Beam Clip Pre-stress Hanger

Accessories | Bridge Deck | Pres Steel Hangers

Dayton

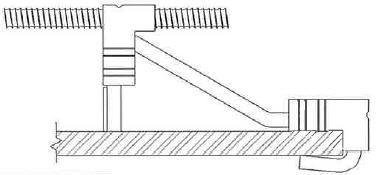

The C67 Tie Bar Beam Clip Pre-stress Hanger is an ideal half hanger for supporting overhang formwork over stay-in-place decking. These half hangers are fabricated with the strut wire formed into a "J" shape so that it engages with the edge of the flange. A 90 degree interlock end clip is welded to the strut wire to provide increase capacity. This hanger is furnished with a 90 degree end clip that accepts a 1/2" diameter coil rod or bolt.
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
43438 Call for price {{ vm.getListPrice('43438') | currency }}
/ EACH
Call for price {{ vm.getListPrice('43438') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('43438') | currency:"$":3 }} 1 each increments
43439 Call for price {{ vm.getListPrice('43439') | currency }}
/ EACH
Call for price {{ vm.getListPrice('43439') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('43439') | currency:"$":3 }} 1 each increments
43440 Call for price {{ vm.getListPrice('43440') | currency }}
/ EACH
Call for price {{ vm.getListPrice('43440') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('43440') | currency:"$":3 }} 1 each increments
43442 Call for price {{ vm.getListPrice('43442') | currency }}
/ EACH
Call for price {{ vm.getListPrice('43442') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('43442') | currency:"$":3 }} 1 each increments
43443 Call for price {{ vm.getListPrice('43443') | currency }}
/ EACH
Call for price {{ vm.getListPrice('43443') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('43443') | currency:"$":3 }} 1 each increments
43445 Call for price {{ vm.getListPrice('43445') | currency }}
/ EACH
Call for price {{ vm.getListPrice('43445') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('43445') | currency:"$":3 }} 1 each increments
43446 Call for price {{ vm.getListPrice('43446') | currency }}
/ EACH
Call for price {{ vm.getListPrice('43446') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('43446') | currency:"$":3 }} 1 each increments
Flange Thickness
0.75
1.00
1.25
1.50
1.75
2.00
2.25
2.50
2.75
3.00
