C41 - Coil Rod Hanger

Accessories | Bridge Deck

Dayton

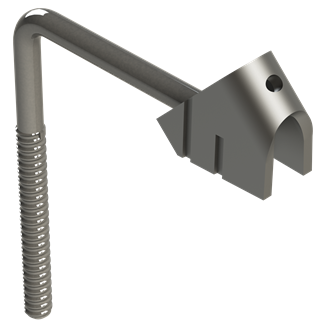

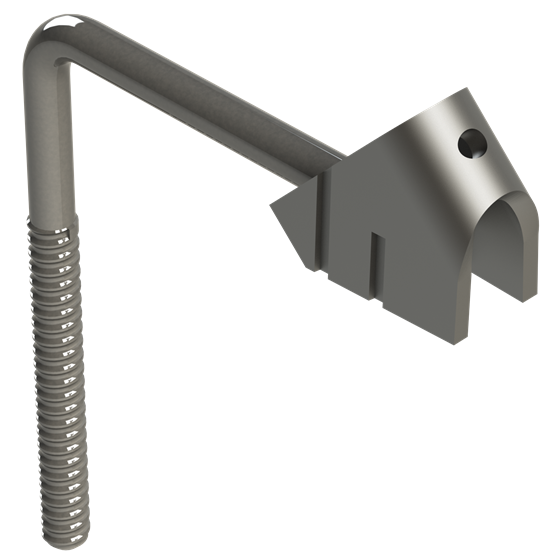

The C41 45° Coil Rod Hanger is fabricated with a 1/2" 45° end section welded to the end of a strut that is bent 90° and threaded at the other end. The threaded end of the hanger supports the interior formwork while the end with the 45° end section supports the overhang bracket on the exterior side of the beam. This hanger can accommodate haunch heights of 1/2" and greater, and comes equipped with a 1" breakback.

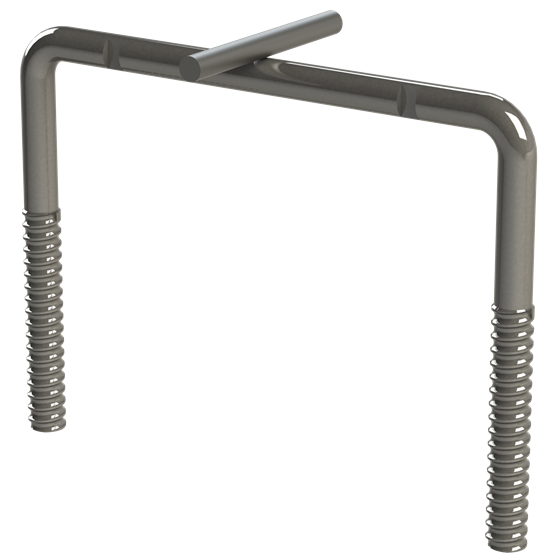

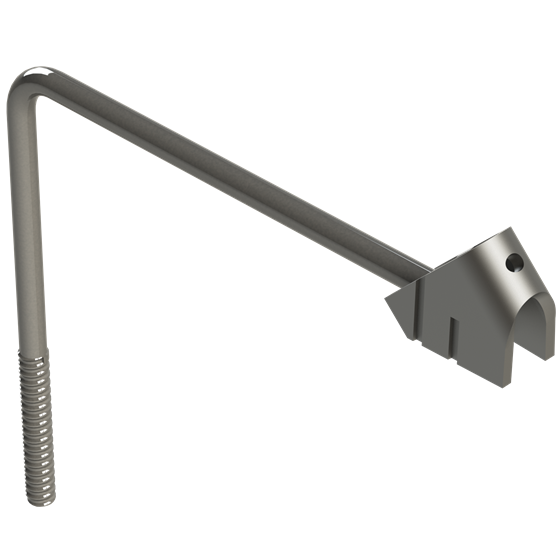

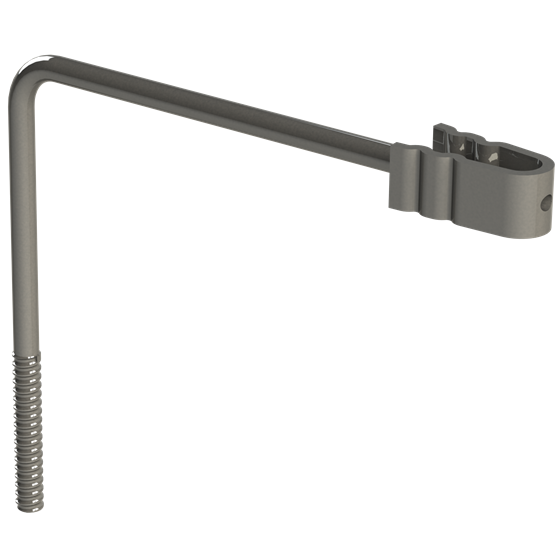

The C41 Coil Rod Hangers type 1 and type 4A are made to order products only. Please call for lead timing, pricing, and availability.
