Century Series Hangers

Accessories | Bridge Deck | Century Series Hangers

The Dayton Superior Century Series Hangers are ideal for supporting overhang formwork.

These Century Series Hangers can be supplied hot dipped galvanized after fabrication as a portion of the hanger will normally not be encased in the concrete deck leaving the exposed portion to rapidly corrode if not protected with a heavy zinc coating. Available for either ½" or ¾" diameter coil rod. The configuration of both ends is based on the application.

Safe Working Loads:
  • ½” Diameter Coil Rod = 3,000, 6,000, 9,000 lbs
  • ¾” Diameter Coil Rod = 12,000 and 18,000 lbs
  • Based on a 2:1 safety factor

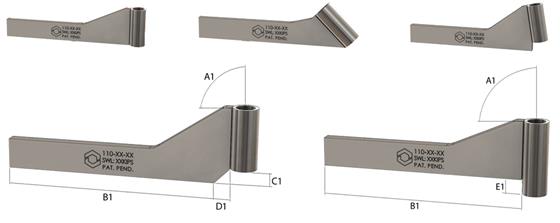

  • Safety Note: All C110 Century Series hanger requires the use of two B13 or one B25 Coil Nut

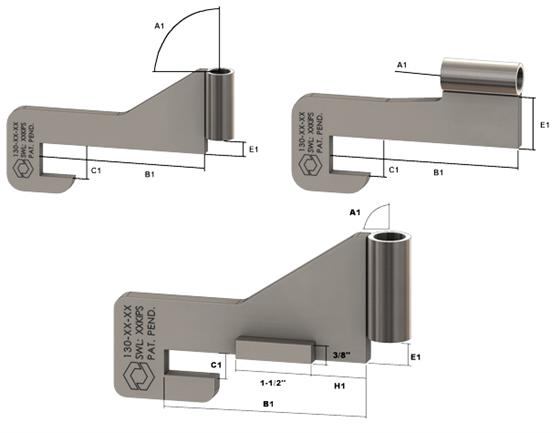

Use the C110 and C130 Century Series Hangers as half hangers when stay-in-place decking is used on the interior bays of a bridge deck.

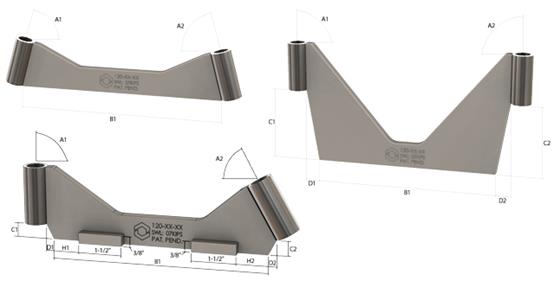

Use the C120 Century Series Hanger when stay-in-place metal decking is used and welding to the steel girder is prohibited. The C120 wrap around hanger is the strongest choice. May be used in either steel or concrete beams.

Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
  • One-piece design creates higher load capacity
  • Plain or Hot Dipped Galvanized finishes available. Meets non-rusting requirements
  • No special installation equipment is required
  • Available with a bearing plate that provides additional support and spreads the load
