Yeti-Anchor®

Accessories | Precast

Dayton

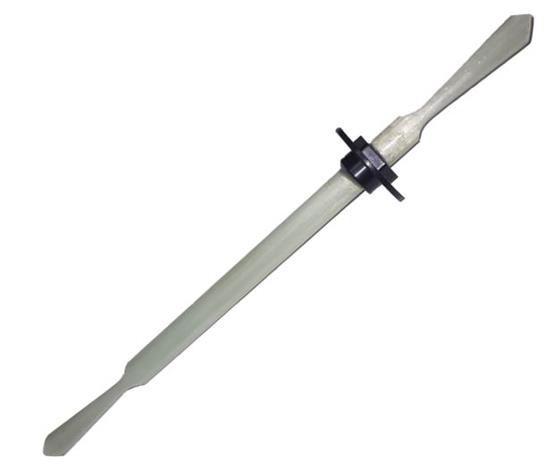

The P27 Yeti-Anchor is a high performance, non-conductive, non-corrosive continuous glass-fiber reinforced polymer anchor used as a wythe connector for concrete insulated sandwich panel construction.

Offered for 1.5" (YS) and 2" (YL) concrete embedment and insulation thicknesses of 2" to 4".  Additional insulation thicknesses can be offered upon request.

Approvals / Compliances include:
* ICC-EC AC320, Acceptance Criteria for Fiber-Reinforced Composite Anchors in Concrete.
* 4-hour ASTME-119 fire rating
* NFPA 285 fire testing passed
* ICC-ES ESR-3280

To understand the spacing of the connectors:
Access the Sandwich Panel Connector Spacing Calculator by clicking here
If you require a guide to using this calculator, click here

Do you require the connectors to be incorporated into a drawing or an overall quote?
Access the Sandwich Panel Connector Drawing Request Form by clicking here.

Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
100531 YS - 20 1.5" CONCRETE DEPTH / 2" INSULATION THICKNESS - SOLD IN 250 PARTS PER CARTON Call for price {{ vm.getListPrice('100531') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('100531') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('100531') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
100532 YS - 30 1.5" CONCRETE DEPTH / 3" INSULATION THICKNESS - SOLD IN 250 PARTS PER CARTON Call for price {{ vm.getListPrice('100532') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('100532') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('100532') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
100533 YS - 40 1.5" CONCRETE DEPTH / 4" INSULATION THICKNESS - SOLD IN 250 PARTS PER CARTON Call for price {{ vm.getListPrice('100533') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('100533') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('100533') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
100534 YL - 20 2" CONCRETE DEPTH / 2" INSULATION THICKNESS - SOLD IN 250 PARTS PER CARTON Call for price {{ vm.getListPrice('100534') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('100534') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('100534') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
100535 YL - 30 2" CONCRETE DEPTH / 3" INSULATION THICKNESS - SOLD IN 250 PARTS PER CARTON Call for price {{ vm.getListPrice('100535') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('100535') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('100535') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
100536 YL - 40 2" CONCRETE DEPTH / 4" INSULATION THICKNESS - SOLD IN 250 PARTS PER CARTON Call for price {{ vm.getListPrice('100536') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('100536') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('100536') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
100576 YETI PULL TESTER; SOLD IN EACH Call for price {{ vm.getListPrice('100576') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('100576') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('100576') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
  • No thermal bridging between wythes
  • Limits occurrence of interstitial condensation
  • Provides a range of composite action levels
  • Application software to aid with design and layout
  • Fast and Flexible installation
  • Increased load bearing
  • Stiffer panels for easier handling
  • Material, labor and transportation reduction
  • Compatible with all code compliant rigid foam insulation.
Yeti-Anchors are compatible with a variety of standard, code compliant insulation types and allows the installer to "self-drill" the anchor through the insulation.  Used for Precast and Tilt-Up construction and can be used simultaneously with the Dayton Superior Delta Ties.
