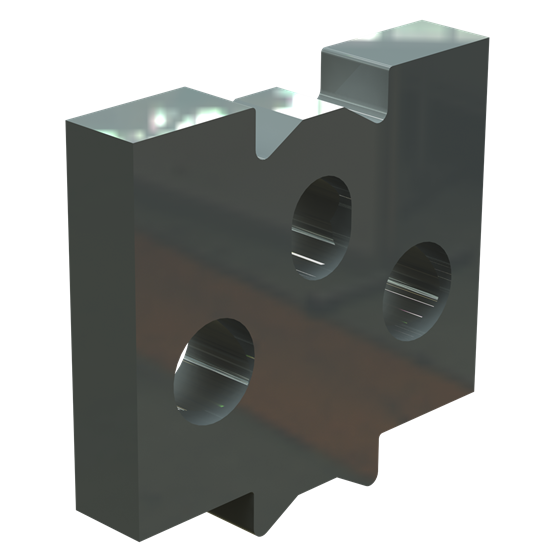

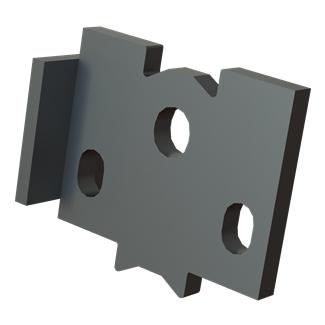

P92S - Fleet-Lift™ Sandwich Panel Erection Anchor

Accessories

Dayton

The Fleet-Lift Sandwich Panel Erection Anchor is designed to erect precast, insulated sandwich panels with a minimum loss of insulation. The anchor uses standard Fleet-Lift recess plugs and ring clutches.

The P92S Sandwich Panel Erection Anchor is designed for use with 2", 3" and 4" thick insulated sandwich panels. The design of the anchor allows it to distribute anchor loads evenly to both concrete wythes. This is accomplished by the use of two specially bent rebars per sandwich panel anchor. The sandwich panel erection anchor, with its unique anchor head shape, in combination with the two bent rebars, transfers both the anchor's shear and tension loads evenly into each of the concrete wythes.

Place one bent rebar through the anchor's top hole and the second rebar through the anchor's bottom hole. The rebar extend from the anchor into the top and bottom wythe of concrete. The two specially bent rebar must be used with the sandwich panel erection anchor to achieve the safe working loads shown.

The P92S Fleet Lift Sandwich Panel Erection Anchor is also available to be made to order. Please call for lead timing, pricing, and availability.
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
FL217 4.00" - 4 TON; SOLD IN 400 PARTS PER SKID Call for price {{ vm.getListPrice('FL217') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('FL217') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('FL217') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
FL077E 6.00" - 4 TON EPOXY; SOLD IN PARTS PER CARTON Call for price {{ vm.getListPrice('FL077E') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('FL077E') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('FL077E') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
FL077 6.00" - 4 TON; SOLD IN 400 PARTS PER SKID Call for price {{ vm.getListPrice('FL077') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('FL077') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('FL077') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
FL184 6.00" - 8 TON; SOLD IN 400 PARTS PER SKID Call for price {{ vm.getListPrice('FL184') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('FL184') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('FL184') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
FL184G 6.00" - 8 TON HDGALV; SOLD IN 200 PARTS PER CARTON Call for price {{ vm.getListPrice('FL184G') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('FL184G') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('FL184G') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
100053 7.00" - 10 TON PLAIN; SOLD IN 1 EACH Call for price {{ vm.getListPrice('100053') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('100053') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('100053') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
145567 7.00" - 10 TON HDGALV; SOLD IN 100 TO A CARTON Call for price {{ vm.getListPrice('145567') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('145567') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('145567') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
101676 8.00" - 10 TON PLAIN; SOLD IN 100 TO A CARTON Call for price {{ vm.getListPrice('101676') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('101676') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('101676') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
145568 8.00" - 10 TON HDGALV; SOLD IN 100 TO A CARTON Call for price {{ vm.getListPrice('145568') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('145568') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('145568') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
