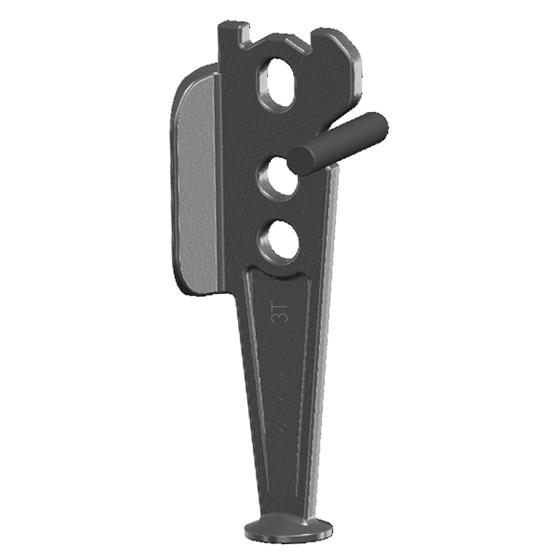

P92FEWDP Forged Erection Anchor with Shear Plate and Secondary Shear Pin

Accessories | Precast | Precast Anchors & Inserts

Dayton
The P92FEWDP Forged Erection Anchor with Shear Plate and Secondary Shear Pin is specifically designed to provide greater lifting capacities for horizontal to vertical edge lifts.  By welding a solid shear pin opposite the shear plate, the anchor can resist shear loads in both directions.  The anchors are forged to provide 20% greater safe working loads.  The P92FEWDP eliminates the need for a shear bar on the primary and secondary shear loading.  Due to the anchor being forged, it does not depend on welds or thread engagement to develop its safe working load.  Forging provides maximum safety with its advantageous material structure.  This allows the anchor to easily meet the OSHA requirement of 4 to 1 factor of safety.

The P92FEWDP Fleet Lift Forged Erection Anchor is also available to be made to order. Please call for lead timing, pricing, and availability.
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
142882 10.44" - 6 TON; SOLD IN 15 PARTS PER CARTON Call for price {{ vm.getListPrice('142882') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('142882') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('142882') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
100155 12.56" - 12 TON PLAIN; SOLD IN 16 PARTS PER CARTON Call for price {{ vm.getListPrice('100155') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('100155') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('100155') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
  • The P92FEWDP has two steel protrusions or “ears” at the head of the anchor which provides protection against concrete spalling.  These “ears” restrict the ring clutch rotation during lateral pulls.  As a result, lateral forces are transmitted directly to the edge of the anchor instead of the concrete.
  • The P92FEWDP Forged Erection Anchor utilizes the Fleet P91S or Fleet P91NC lifting hardware and the P99 Recess Plugs.
  • The P92FEWDP Forged erection Anchors are available in a plain finish.

The P92FEWDP Forged Erection Anchor with Shear Plate and Secondary Shear Pin is designed specifically for edge tilting precast concrete elements from the horizontal to vertical position.  When the panel is placed on an “A” frame or is required to be rotated 180°, the addition of the shear pin works with the shear plate to resist the shear load in the opposite direction of the shear plate.  The shear pin helps to protect the concrete from spalling when the shear loads are applied in a secondary direction.
