C61 Combination Bridge Deck Hanger

Accessories | Bridge Deck

Dayton

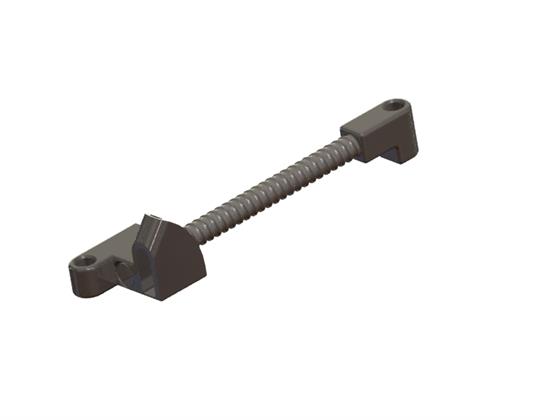

The C61 Combination Exterior Hanger is consists of three individual parts made up of a 90° Interior End Section with an integral interlock, a length of 3/4" diameter coil rod (cut to flange width) and a Combination Exterior End Section.
Product Code Description {{vm.msrpHeading}} {{vm.userPriceHeading}} Sold In Quantity
43720 90 DEG. - PLAIN; MADE IN USA; SOLD IN 3000 PARTS PER DRUM Call for price {{ vm.getListPrice('43720') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('43720') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('43720') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
101022 90 DEG. - HDGALV; MADE IN USA; SOLD IN 3000 PARTS PER DRUM Call for price {{ vm.getListPrice('101022') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('101022') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('101022') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
43710 90/45 DEG. - PLAIN; MADE IN USA; SOLD IN 1500 PARTS PER DRUM Call for price {{ vm.getListPrice('43710') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('43710') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('43710') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
101021 90/45 DEG. - HDGALV; MADE IN USA; SOLD IN 1500 PARTS PER DRUM Call for price {{ vm.getListPrice('101021') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('101021') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('101021') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
101753 90 DEG. - PLAIN; SOLD IN 18 PARTS PER CARTON Call for price {{ vm.getListPrice('101753') | currency }}
/ EACH 		Call for price {{ vm.getListPrice('101753') | currency }} / EACH Log In Call for price {{ vm.getUserPrice('101753') | currency:"$":3 }} 1 each increments
Packaging Details
EACH EACHES
Add To Cart
Remove From Cart
  • Ideal to have on-hand to minimize down time from hanger shortages and unexpected beam sizes.
  • Available in Plain or HDGALV finishes

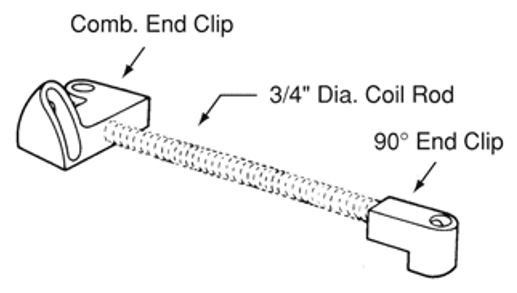

The 3/4" diameter coil rod and the two End Sections are assembled in the field to make up a complete hanger. The length of the 3/4" diameter coil rod that connects the two End Sections is equal to the beam's flange width.

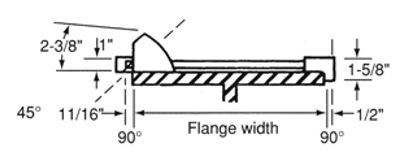

The Combination End Section is used with a 1/2" diameter coil rod/bolt that can be used at any angle from 5° to 45°. In addition, this End Section is also designed to accept 1/2" diameter coil rod/bolt installed at 90° to the top of the flange.

Two of the External Hanger's 90° End Sections and a length of 3/4" diameter coil rod may be used to field assembly a 90° Interior Hanger.
