V62 - Victory Bear Bulkhead Chamfer

Accessories | Precast | Rustication & Chamfers

Dayton

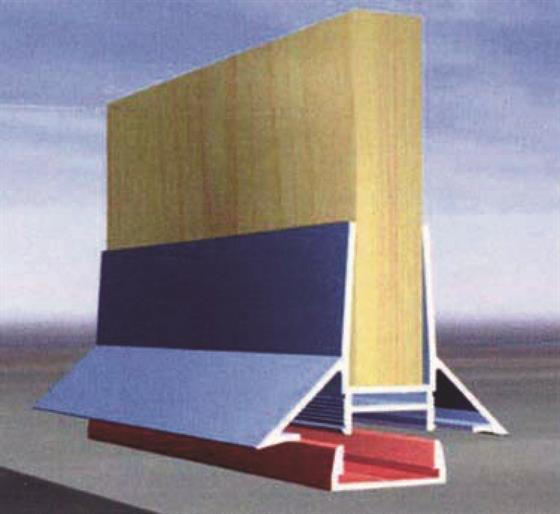

PVC 2-Part Bulkhead 45 Degree Double Chamfer is designed for 3/4" plywood or 1" lumber bulkhead form. Product is used with base clip for attachment. Features Flexible Edge Seals which reduce seepage of concrete under the product.

The Bulkhead Chamfer is used for the face edge of the wall panels to eliminate edge breakage at the panel face and ease in application of caulking of the panel joint.

  • 100% PVC Reduces Costs—PVC virtually eliminates concrete pitting caused by wood-wicking. It also eliminates discoloration caused by wood sugars. It almost entirely eliminates the need for grinding and patching, saving you man-hours or subcontractor expenses.
  • Patented “Flexible Edge Seal”—The patented  Flexible Edge Seal fits tightly against the casting surface, preventing concrete seepage while creating sharp, crisp lines.
  • Hidden Fastening System—No finish blemishes from screw heads or excess glue. With Victory Bear Bulkhead all screws and glue remnants are hidden under the surface for a sharp, glasslike finish.
  • Reduces Your Forming Cost— Victory Bear Bulkhead has been redesigned for use with both 3/4" plywood and 1" lumber, allowing you a choice of form boards.
Product Code Packaging
128693 BULKHEAD 3/4-1 INCH DOUBLE CHAMFER - 8' LENGTH VB 767
128695 DOUBLE CHAMFER 2 X 3/4 - 8' LENGTH VB 863
128697 SINGLE CHAMFER 3/4 TOP/INSIDE CHAMFER - 8' LENGTH VB 736
128698 SINGLE CHAMFER 3/4 HANGING CHAMFER - 8' LENGTH VB 765
128699 SINGLE CHAMFER 1/2" X 45 DEGREE - 8' LENGTH VB 735
128700 DRIP EDGE CHAMFER - 8' LENGTH VB 741
129110 SNAP SINGLE CHAMFER - 3/4" WITH TAPE VB 871
129111 SNAP SINGLE CHAMFER 3/4" W/O TAPE VB 872
129282 UNIVERSAL DRIP EDGE - 8' LENGTH VB 710
129436 SNAP CHAMFER WITH TAPE 1/2" X 8' EACH
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
