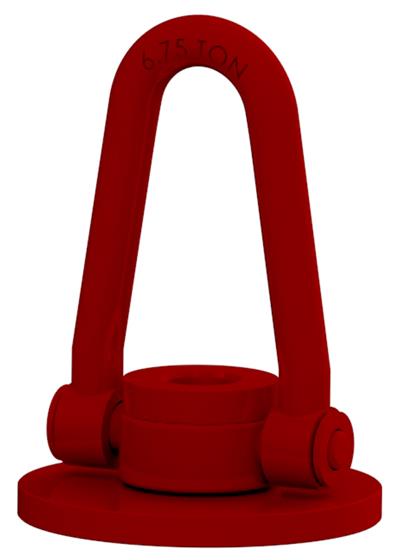

T26 - Double Swivel Lifting Plate

Accessories | Tilt-Up

Dayton
  • Designed for use with 1", 1-1/4" and 1-1/2" diameter coil bolts.
  • Rotates 360 degrees in horizontal plane and 180 degrees in vertical plane.
  • Round bearing plate provides maximum safety when used with any coil bolt lifting system.
  • Heavy forged bail is made of high-strength material.
  • Double swivel action allows bail to rotate in direction of applied load.
  • Safe working load is 9,000 lbs. for 1" diameter.
  • Safe working load is 13,500 for 1-1/4" and 1-1/2" diameter.

Pricing Information/Unit Sizes

Product Code Packaging
49122 1" BOLT DIA
49124 1-1/4" BOLT DIA
49126 1-1/2" BOLT DIA
106500 1" BUSHING
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
