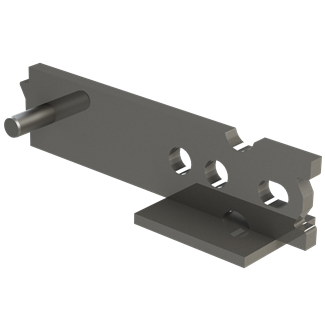

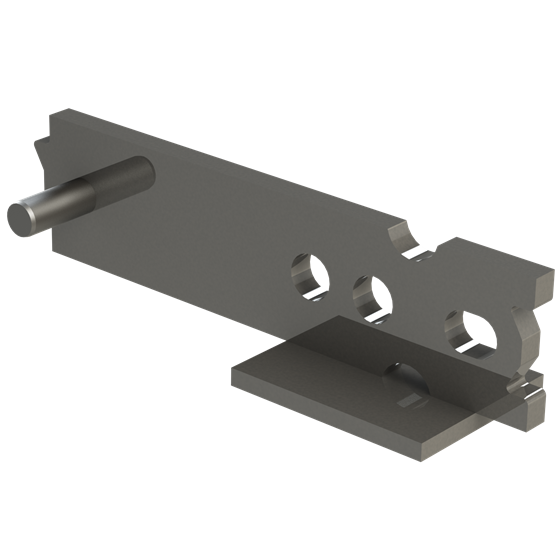

P92P - Fleet-Lift Erection Anchor with Shear Plate

Accessories

Dayton
The P92P Fleet-Lift Erection Anchor with Shear Plate is designed specifically for edge tilting precast concrete elements from the horizontal to a vertical position. An integral shear plate eliminates any possibility of forgetting to install a required shear bar. As on other Fleet-Lift Erection Anchors, two steel protrusions or “ears” at the head of the anchor provide protection against concrete spalling. These “ears” restrict the ring clutch rotation during lateral pulls. As a result, lateral forces are transmitted directly to the edge of the anchor instead of the concrete. The body of the erection anchor is shaped to allow full reinforcement for secure support and spall-free rotation. P92P Erection Anchors are available plain or hot-dipped galvanized.

Pricing Information/Unit Sizes

Product Code Packaging
FL147 ERECTION ANCHOR 2 TON 8.38" PLAIN
144904 ERECTION ANCHOR 2 TON 8.38" PLAIN (MADE IN USA)
FL148 ERECTION ANCHOR 4 TON 10.88" PLAIN
FL449 ERECTION ANCHOR 6 TON 13.25" PLAIN
FL149 ERECTION ANCHOR 8 TON 13.25" PLAIN
FL147G ERECTION ANCHOR 2 TON 8.38" HOT DIPPED GALV.
144050 ERECTION ANCHOR 2 TON 8.38" HOT DIPPED GALV. (MADE IN USA)
FL148G ERECTION ANCHOR 4 TON 10.88" HOT DIPPED GALV.
FL449G ERECTION ANCHOR 6 TON 13.25" HOT DIPPED GALV.
FL149G ERECTION ANCHOR 8 TON 13.25" HOT DIPPED GALV.
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
