P92DP - Fleet-Lift Erection Anchor with Shear Plate and Shear Pin

Accessories

Dayton

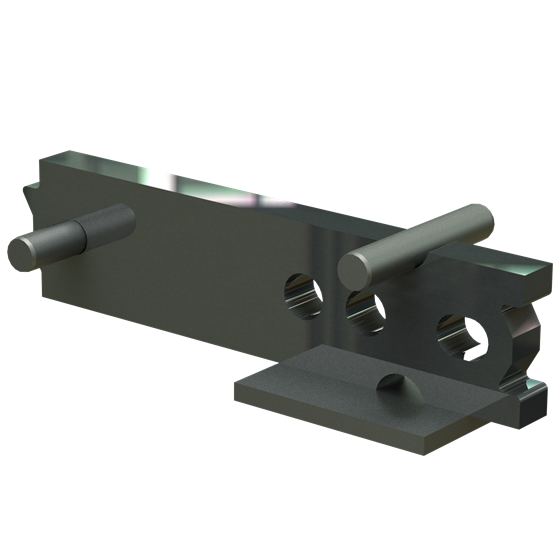

The Dayton Superior P92DP Fleet-Lift Erection Anchor with a Shear Plate and a Shear Pin is similar to the P92P anchor with the addition of a shear pin. By welding a solid shear pin opposite the shear plate, the anchor can resist shear loads in both directions. The P92DP anchor is set in the form with the shear plate in the down position to resist the primary shear load. When the panel is placed on an “A” frame or is required to be rotated 180°, the addition of the shear pin works with the shear plate to resist the shear load in the opposite direction of the shear plate. The shear pin helps to protect the concrete from spalling when the shear loads are applied in a secondary direction. P92DP Erection Anchors are available either plain or hot-dipped galvanized steel.

Pricing Information/Unit Sizes

Product Code Packaging
FL647 PLAIN 2 TON 8.38" PLAIN
FL648 PLAIN 4 TON 11.88" PLAIN
FL649 PLAIN 8 TON 13.25" PLAIN
142881 FORGED ERECTION ANCHOR W/PRIMARY SHEAR PLATE & SECONDARY SHEAR PIN 3 TON 8.00" PLAIN
142882 FORGED ERECTION ANCHOR W/PRIMARY SHEAR PLATE & SECONDARY SHEAR PIN 6 TON 10.44" PLAIN
142883 FORGED ERECTION ANCHOR W/PRIMARY SHEAR PLATE & SECONDARY SHEAR PIN 10 TON 12.56" PLAIN
100155 FORGED ERECTION ANCHOR W/PRIMARY SHEAR PLATE & SECONDARY SHEAR PIN 12 TON 12.56" PLAIN
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
