Bar Lock® Couplers

Accessories | Splicing | Bar Lock

Dayton

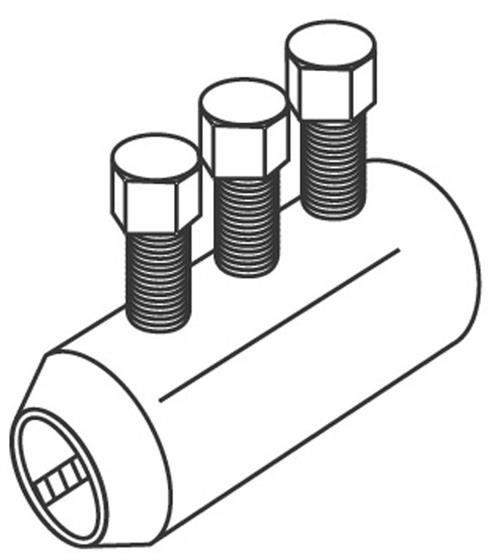

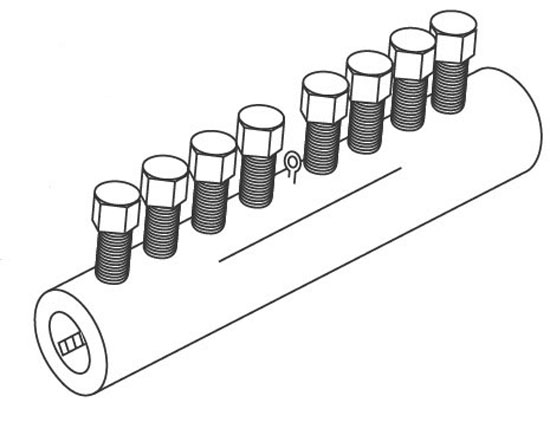

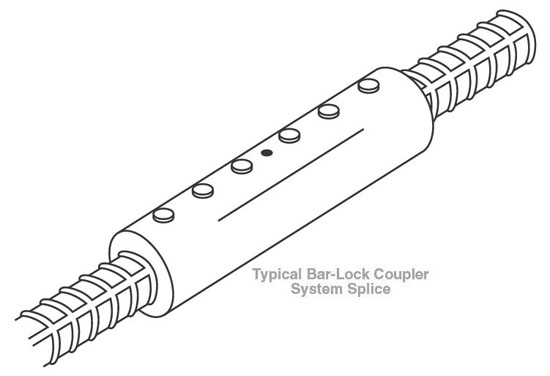

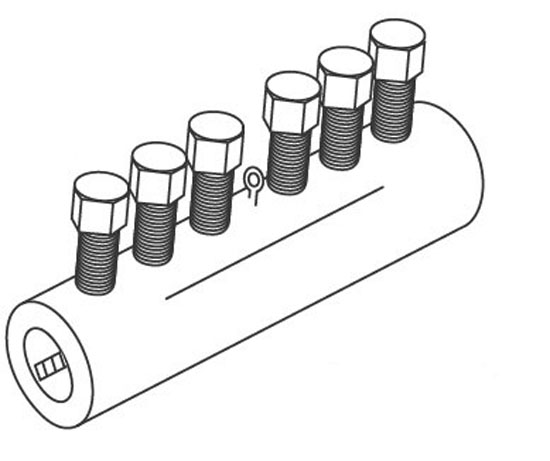

The Dayton Superior Bar Lock® Coupler System provides a simple, quick, cost effective method for splicing smooth or deformed rebar in tension and/or compression applications. Bar Lock couplers are effective when used as a "positional" coupler when the rebar is fixed in place or when the rebar is free to rotate. Bar Lock couplers utilize lock-shear bolts and serrated grip rails to mechanically splice the rebar. The serrated grip rails are embedded in the rebar as the lock-shear bolts are tightened. The heads of the lock-shear bolts are designed to shear off at a prescribed torque to ensure proper installation.

Benefits
  • Cost and time savings
  • Ease of use
  • Availability
  • Strength
  • Versatility

Features/Details

  • Quick and easy to install
  • No bar end prep

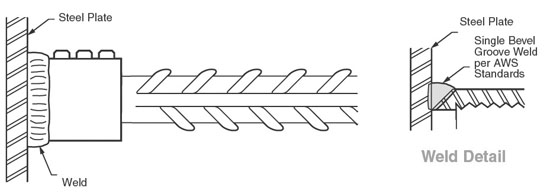

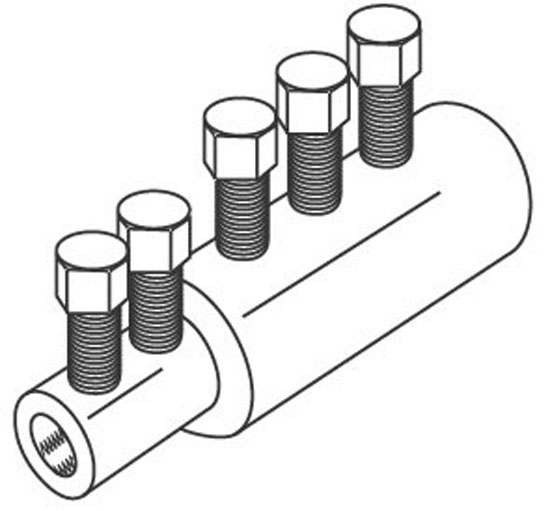

  • Available in standard, transition, and weldable versions in sized #4 through #18
  • High strength in tension, compression and seismic applications
  • No special installation equipment needed
  • Ideal for new construction and rehab projects
  • Made in America
