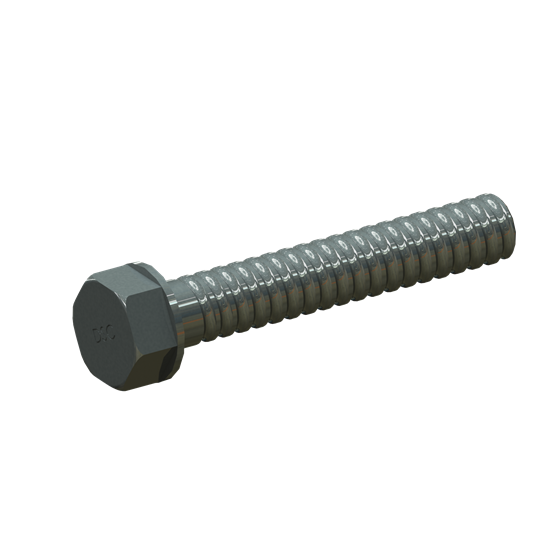

B14 - Coil Bolts

Accessories | Wall Forming Accessories

Dayton
  • B14 coil bolts have fast-acting, self-cleaning threads and are available in 3/4", 1", 1-1/4" and 1-1/2" diameter
    bolts.
  • Bolts may be furnished with integrally formed heads or made with B12 coil rod and B25 hex nuts
    securely welded on.
  • May be reused—but will wear and must be regularly inspected.
  • Must be kept clean and lubricated.
  • When determining overall length of lifting bolt see example on page 62 —you must consider:
        A. Height of hardware
        B. Insert Setback
        C. Minimum coil penetration
  • Minimum coil penetration shown in the charts below applies to all coil products.

Pricing Information/Unit Sizes

Product Code Packaging
45100 1/2" DIA. 1/2" DIA X 1-1/2"
45101 1/2" DIA. 1/2" DIA X 2"
45102 1/2" DIA. 1/2" DIA X 2-1/2"
45103 1/2" DIA. 1/2" DIA X 3"
45104 1/2" DIA. 1/2" DIA X 3-1/2"
45106 1/2" DIA. 1/2" DIA X 4"
45108 1/2" DIA. 1/2" DIA X 5"
45110 1/2" DIA. 1/2" DIA X 6"
45112 1/2" DIA. 1/2" DIA X 7"
45114 1/2" DIA. 1/2" DIA X 8"
45116 1/2" DIA. 1/2" DIA X 9"
45118 1/2" DIA. 1/2" DIA X 10"
45120 1/2" DIA. 1/2" DIA X 11"
45122 1/2" DIA. 1/2" DIA X 12"
45124 1/2" DIA. 1/2" DIA X 13"
45126 1/2" DIA. 1/2" DIA X 14"
45128 1/2" DIA. 1/2" DIA X 15"
45130 1/2" DIA. 1/2" DIA X 16"
45134 1/2" DIA. 1/2" DIA X 18"
45146 1/2" DIA. 1/2" DIA X 24"
45201 3/4" DIA. 3/4" DIA X 2"
45202 3/4" DIA. 3/4" DIA X 2-1/2"
45203 3/4" DIA. 3/4" DIA X 3"
45204 3/4" DIA. 3/4" DIA X 3-1/2"
45206 3/4" DIA. 3/4" DIA X 4"
45208 3/4" DIA. 3/4" DIA X 5"
45210 3/4" DIA. 3/4" DIA X 6"
45212 3/4" DIA. 3/4" DIA X 7"
45214 3/4" DIA. 3/4" DIA X 8"
45216 3/4" DIA. 3/4" DIA X 9"
45218 3/4" DIA. 3/4" DIA X 10"
45222 3/4" DIA. 3/4" DIA X 12"
45226 3/4" DIA. 3/4" DIA X 14"
45234 3/4" DIA. 3/4" DIA X 15"
45234 3/4" DIA. 3/4" DIA X 18"
45303 1" DIA. 1" DIA X 3"
125697 1" DIA. 1" DIA X 3 1/2"
125698 1" DIA. 1" DIA X 4"
125699 1" DIA. 1" DIA X 5"
125701 1" DIA. 1" DIA X 6"
45314 1" DIA. 1" DIA X 8"
45318 1" DIA. 1" DIA X 10"
45322 1" DIA. 1" DIA X 12"
45326 1" DIA. 1" DIA X 14'
45330 1" DIA. 1" DIA X 16"
45406 1-1/4" DIA. 1-1/4" DIA X 4"
45412 1-1/4" DIA. 1-1/4" DIA X 6"
45414 1-1/4" DIA. 1-1/4" DIA X 8"
45418 1-1/4" DIA. 1-1/4" DIA X 12"
45420 1-1/4" DIA. 1-1/4" DIA X 14"
45508 1-1/2" DIA. 1-1/2" DIA X 6"
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.

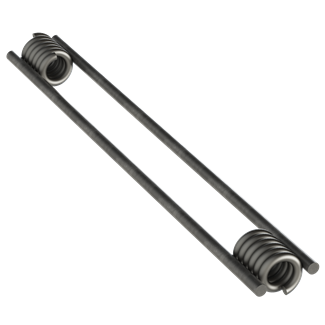

B1 and B2 - Coil Ties
