B12ASW - Swivel Wing Nut

Accessories | Wall Forming Accessories

Dayton
For added versatility, the Swivel Wing Nut features a heavy duty, ribbed washer base, reducing the number of loose working parts required.

Pricing Information/Unit Sizes

Product Code Packaging

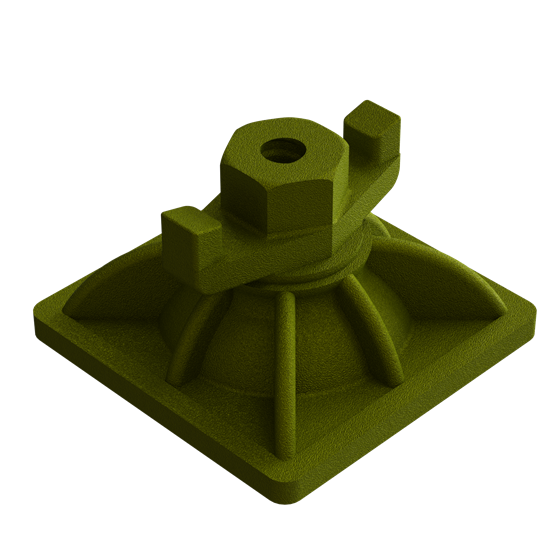

122021 15MM B12ASW SWIVEL WING NUT - SQUARE PLATE; SWL=21,900 LBS - 97.4 KN
123606 20MM B12ASW SWIVEL WING NUT - SQUARE PLATE; SWL=39,200 LBS - 174.4 KN

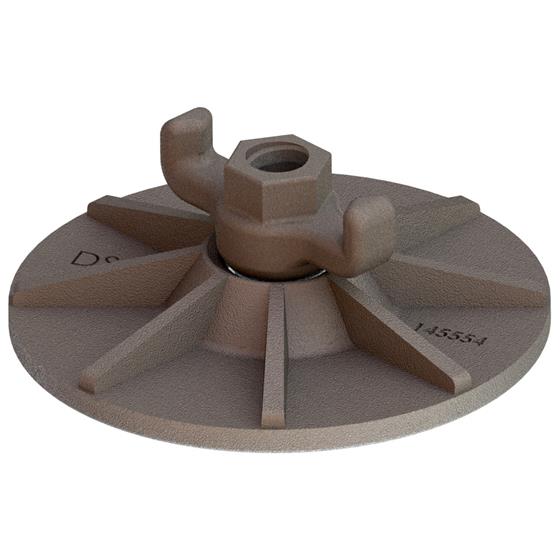

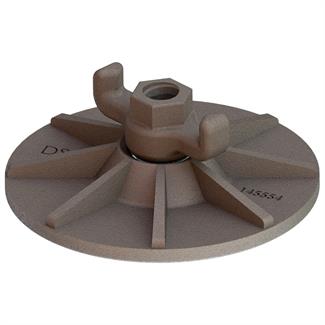

145554 20MM B12ASW SWIVEL WING NUT - ROUND PLATE; SWL=32,500 LBS - 144.6 KN
145181 32MM B12ASW SWIVEL WING NUT - SQUARE PLATE; SWL=32,500 LBS - 144.6 KN
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
