A48 - Gang Loop Ties

Forming | Steel-Ply Ties | Gang Form Ties

Dayton

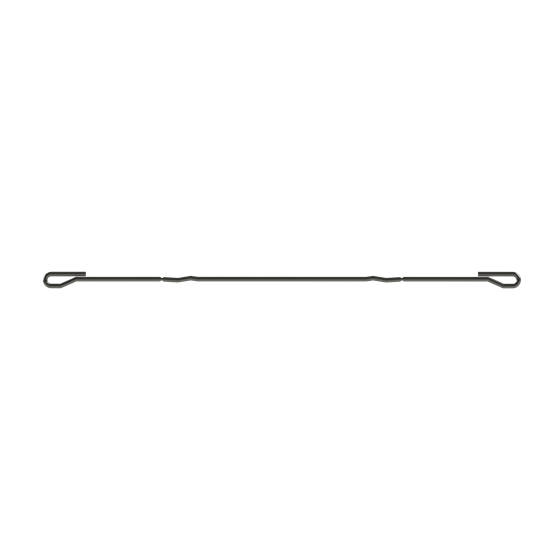

A48 Gang Loop Ties are similar to the A46 tie, but has end dimensions extended to 4-15/16". The longer length allows the tie to be used with gang form bolts (supplied by others) and to be broken back before the form has been stripped.
2,250 lbs. for Standard Ties 3,000 lbs. for Heavy Ties Safe Working Loads
1" breakback is standard. Other breakbacks, plastic cones and/or waterseal washers are available on special order.
Product Code Packaging
F51806 HEAVY DUTY (4-15/16" ENDS) 6" WALL SIZE
F51808 HEAVY DUTY (4-15/16" ENDS) 8" WALL SIZE
F51809 HEAVY DUTY (4-15/16" ENDS) 9" WALL SIZE
F51810 HEAVY DUTY (4-15/16" ENDS) 10" WALL SIZE
F51812 HEAVY DUTY (4-15/16" ENDS) 12 " WALL SIZE
F51813 HEAVY DUTY (4-15/16" ENDS) 13 " WALL SIZE
F51814 HEAVY DUTY (4-15/16" ENDS) 14 " WALL SIZE
F51815 HEAVY DUTY (4-15/16" ENDS) 15" WALL SIZE
F51816 HEAVY DUTY (4-15/16" ENDS) 16 " WALL SIZE
F51818 HEAVY DUTY (4-15/16" ENDS) 18 " WALL SIZE
F51820 HEAVY DUTY (4-15/16" ENDS) 20 " WALL SIZE
F51822 HEAVY DUTY (4-15/16" ENDS) 22 " WALL SIZE
F51824 HEAVY DUTY (4-15/16" ENDS) 24" WALL SIZE
F51826 HEAVY DUTY (4-15/16" ENDS) 26" WALL SIZE
F51830 HEAVY DUTY (4-15/16" ENDS) 30" WALL SIZE
F51836 HEAVY DUTY (4-15/16" ENDS) 36" WALL SIZE
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
